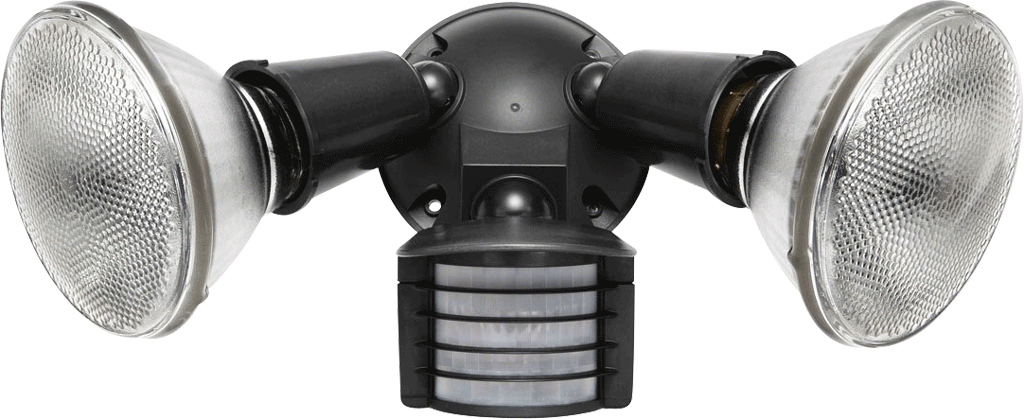

LU300
LU300
- 300 Watt switching capacity
- Manual override
- Fully adjustable positioning
- 110° double look down lens
- Tough, vandal resistant lens and grill
- LS300 fits 1/2" standard threaded cover plates
- 3-Year Warranty
Dimensions
Weight: 1.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Electrical
Voltage
120V AC 60Hz
Power Consumption
1W
Wall Switch Manual Override
Two flip logic prevents activation by momentary power outages. Override resets to auto after 6 hours or at dawn. No extra wiring needed.
Surge Protection
Withstands up to 3000 volts
Switching Capacity
300W incandescent @ 120 volts, 2.5 amps.
Sensor Settings
Time Adjustment
8 seconds to 10 minutes
Photo Control
Deactivates lights during daylight.
Detector Sensitivity
Adjustable from 100% to 50%
Auto Test Logic
5 minutes of test time when powered. Resets to auto mode without adjustment.
Sensor Housing
Made of tough, corrosion resistant polycarbonate
Detection
110° view
Construction
Floodlights
Made of tough, corrosion-resistant polycarbonate. Accepts PAR-38 lamps, medium base, 150W max. Lamps not included.
Other
Warranty
3-year sensor warranty
