LOS2500/120
LOS2500/120
- Super Ceiling Sensor has 3 detectors for triple overlapping coverage to catch small movements
- LED testing and operation Indicator
- Maximum coverage - 360 or hallway models
- Relay and sensor all in one unit reduces installation costs
- Can be wired in parallel
- Compatible with program start ballasts

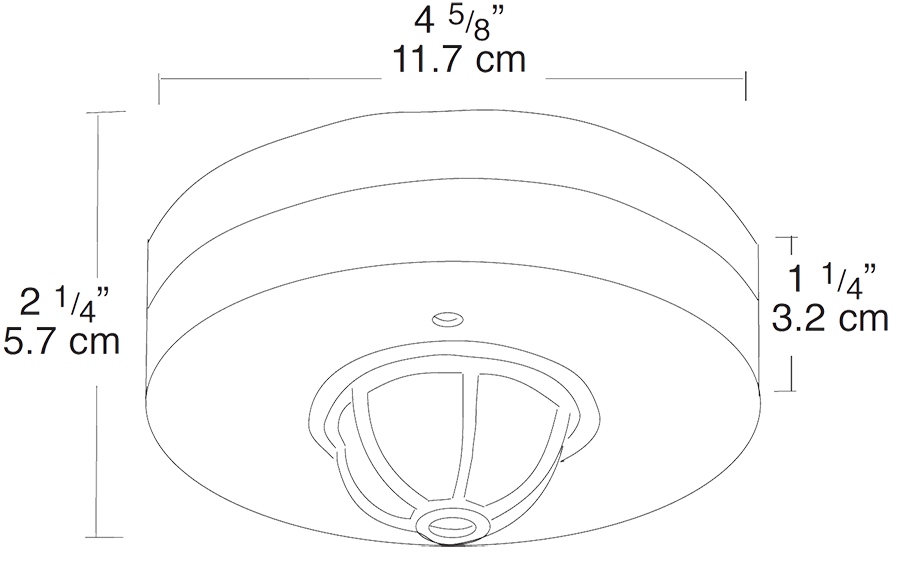

Dimensions
Weight: 0.6 lbs
Technical Specifications
Construction
Easy Installation
Relay and sensor all in one reduces installation cost. Compatible with program start ballasts. Not compatible with instant start ballasts. LED testing and operation indicator.
Sensor Settings
Maximum Reliability
Adjustable detector sensitivity for superior detection
Maximum Versatility
Adjustable time delay. Sensor detection pattern can be customized. No minimum load requirement. Can be wired in parallel.
Time Delay
10 seconds to 15 minutes
Adjustments
Photo Time Sensitivity
Detection
360° view Super Ceiling Sensor
Optical
Coverage Area
2152sf @ 9'
Electrical
Incandescent Watts Switched
2000W
Fluorescent Watts Switched
2000W
Ratings Amps Horsepower
16 amps 6.7 horsepower.
Power Consumption
Negligible
Manual Switch
None
Other
1-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of one (1) year from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
