LFLED6LVYYA
LFLED6LVYYA
- Compatible with 12VAC systems
- Includes 8" ground spike
- 100,000-Hour lifespan
Performance
| Watts | 6W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | 226 lm |
| Efficacy | 35.9 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 6.3W |
Dimensions
Weight: 1.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Electrical
System Transformer
No driver needed. Multi-tap magnetic transformer with 60 Hz only (sold separately). 054A.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -30°C/-34°F
Housing
Precision die-cast aluminum housing
Lens
Solite glass lens
Green Technology
Mercury and UV free. RoHS-compliant components.
Gaskets
High-temperature EPDM foam silicone
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
1 Swivel arm, 1/2" NPS threaded; mounts to sturdy plastic spike (included) for ground mounting
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
LFLED6LVYYA
Landscape 226 Lumens Fern Lflood 6W 12V Ac 2700K Led Hood Spike8 Allen Key Textured Bronze
T8-24-96G-FA8-840-DE-BYP
Linear Tubes 3500 Lumens T8 24W Base Field Adjustable Power 4000K Double Ended Wiring Method

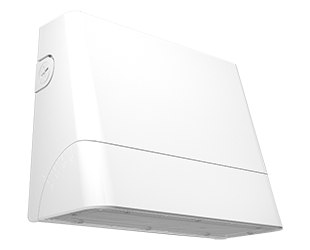

SLIM22-S-30W/480
