LFLED5NBR
LFLED5NBR
- Reduces energy consumption by 87%

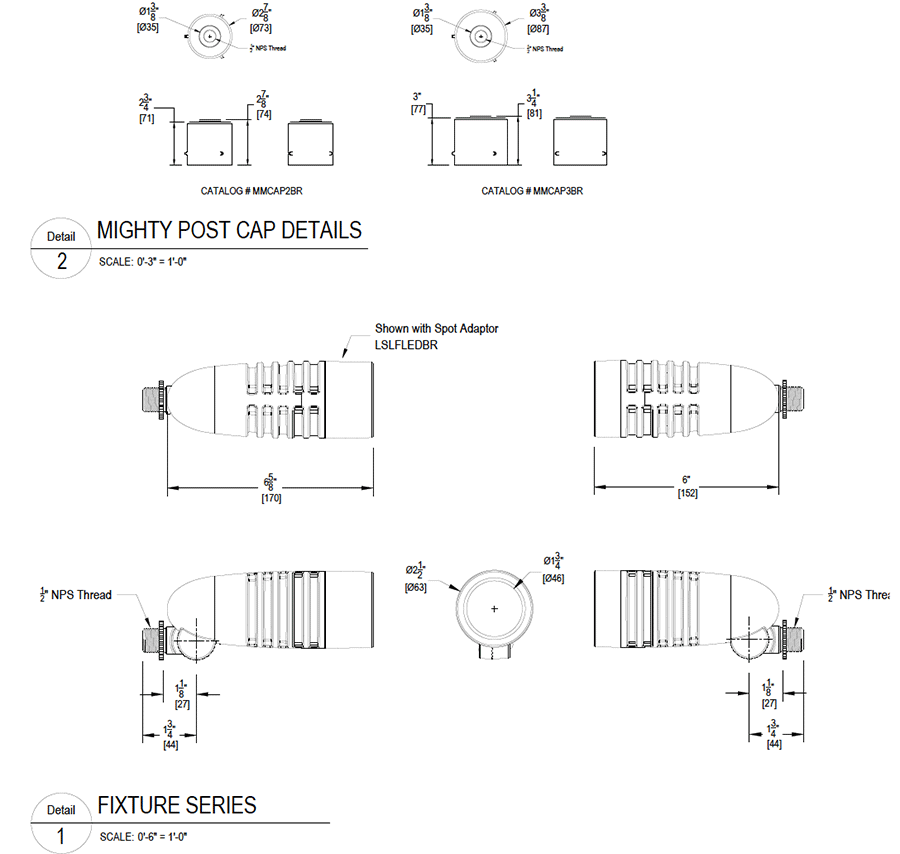

- Mounts to brass Mighty Post caps which fit standard 2" and 3" pipes
- Optional spot hood reflector available
- Microprismatic lens diffuses light to produce a smooth, glare-free effect
- 100% non-rusting, non-corroding brass will naturally patina over time
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 5W |
| Color Temp | 4000K (Neutral) |
| Lumens | 208 lm |
| Efficacy | 40.8 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.1A |
| 208V | 0.06A |
| 240V | 0.05A |
| 277V | |
| Input Watts | 5.1W |
Dimensions
Weight: 1.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Optical
Spot Lens
Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch. Spot reflector kit available here.
NEMA Type
NEMA Beam Spread 4H x 4V
LED Characteristics
LED
5 Watt high output, long-life LED
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Temperature
4000K
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Construction
Lens
Microprismatic diffusion lens for smooth and even light distribution
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast brass housing
Gaskets
High-temperature Silicone
Finish
Not clear coated so it will naturally patina over time
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
LFLED5 is suitable for ground mounting. The best way to discretely and securely ground mount an LFLED5 is with the RAB Mighty Post and Cap. Brass Mighty Post Cap is available here.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The design of the LFLED is protected by Taiwan Patent 01510966 and pending patents in US, Canada, China, and Mexico
Electrical
Driver
Constant Current, Class 2, 100-240V, 50-60Hz, 100-240VAC 0.18A.
