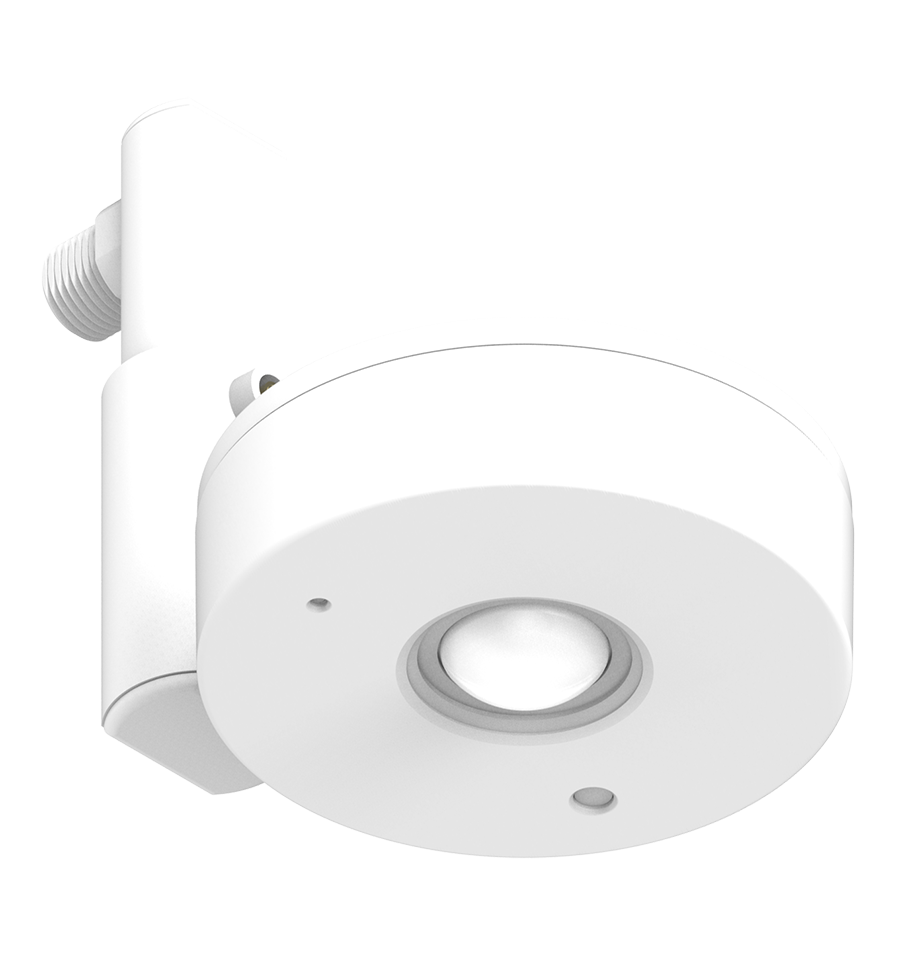

LCHBSENSE15/D10/AH
LCHBSENSE15/D10/AH
- Passive infrared motion detector with built-in fixture and zone control
- Occupancy and vacancy sensing with adjustable sensitivity and timeouts
- Switching for a fixture or entire zone, hard-wired or remote
- Supports 0-10V dimming for LED and fluorescent fixtures
- Easily set up schedules and scenes
- Power measurement and energy reporting
- Remote control from Lightcloud web application
- Communicates over secure wireless mesh network - no internet required
- Closed loop daylight harvesting

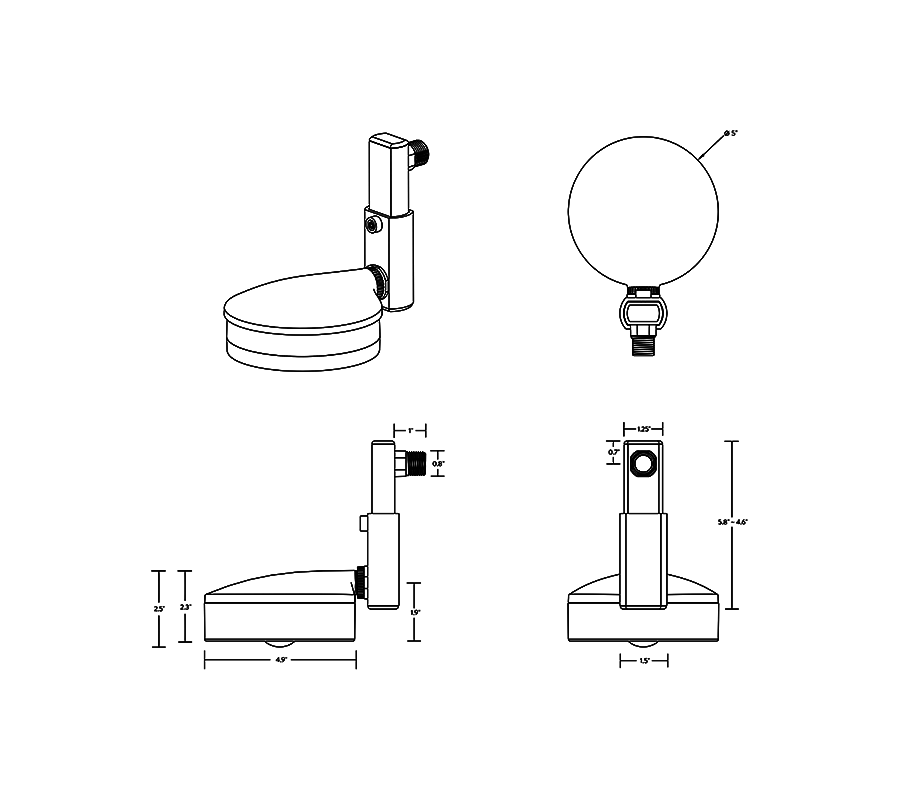

Dimensions
Weight: 1.1 lbs
Technical Specifications
Product Details
Application
High Bay (25-45 ft mounting height)
Mounting Type
Fixture/Junction Box (1/2" NPT)
Accessories Included
Height Adjuster
Compliance
UL Listed
Indoor use only
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Can dim as low as 1%. Actual dimming range is defined by driver.
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input Voltage
120V through 277V
Frequencies
50/60 Hz
Electrical Ratings
20 mA @ 120VAC
12 mA @ 277VAC
12 mA @ 277VAC
Load Switching Capacity
Incandescent: 220VAC, 13A
Standard Ballast: 120/277 VAC, 6A/4A
Electronic Ballast: 277VAC, 12A
Standard Ballast: 120/277 VAC, 6A/4A
Electronic Ballast: 277VAC, 12A
Storage Temperature Range
-40°F to 185°F (-40°C to 85°C)
Construction
Height Adjuster
Extends sensor downwards, adjustable from 2.87" to 3.78"
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Maximum Relative Humidity
95%
Wire Gauge
4x 16AWG High-voltage pigtails, stripped
2x 22AWG Low-voltage pigtails, stripped
2x 22AWG Low-voltage pigtails, stripped
Sensor Settings
Detection Range
40 ft diameter at 30 ft mounting height
50 ft diameter at 45 ft mounting height
50 ft diameter at 45 ft mounting height
Wireless Range
Line of Sight
1,000 ft
Obstructions
100 ft
