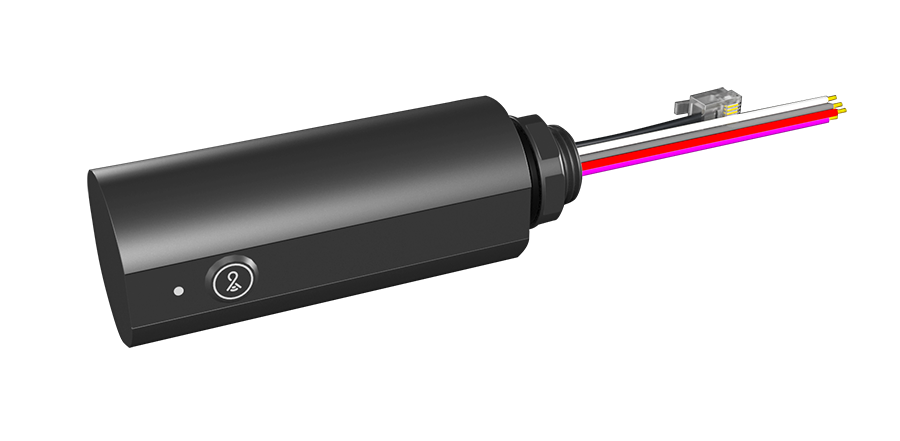

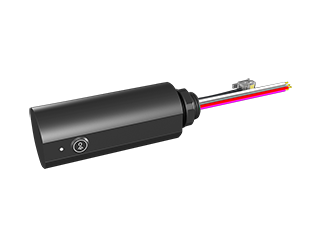

LCCONTROL/MINI/K
LCCONTROL/MINI/K
- Wireless switching, 0-10V dimming, and power monitoring with a smaller footprint for 3A applications
- Has connector for use with LCLCsense (sold separately) proving motion and daylight sensing
- Easy setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD
- Small profile for concealed installations
- Cloud-based management - no software to install or maintain
- Connects to Lightcloud Gateway and other Lightcloud devices
- Connects via a secure, encrypted, and self-healing 2.4 GHz wireless mesh network
- Repeater Mode to extend range of wireless mesh network
- If power to Controller is lost, notification is shown in the Lightcloud application
- If communication is lost, Controller can fall back to a customizable emergency state

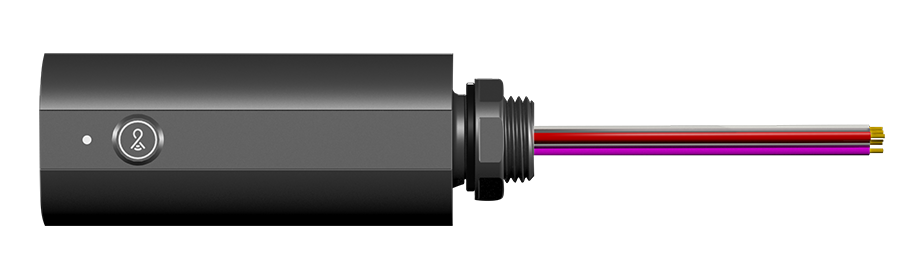

Dimensions
Weight: 0.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for indoor and outdoor use.
Plenum Rated
Plenum Rated
IP Rating
Ingress protection rating of IP66 for dust and water
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Can dim as low as 1%. Actual dimming range is defined by driver.
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input Voltage
120V through 277V
Frequencies
50/60 Hz
Standby Power Consumption
<0.8W
Electrical Ratings
30 mA @ 120VAC
20 mA @ 277VAC
20 mA @ 277VAC
Load Switching Capacity
277V: 1.81A (500W) Electronic Ballast (CFL, LED Driver)
120V: 4.2A (500W) Electronic Ballast CFL, LED Driver)
120V: 4.24A (500W) Tungsten
277V: 1.81A (500W) Tungsten
120V: 2.2A (264VA) Standard Ballast (Magnetic Ballast)
277V: 1.8A (500VA) Standard Ballast (Magnetic Ballast)
120V: 4.2A (500W) Resistive or Inductive
0-10V SELV: Limited Energy (Class 2) 0-10V Dim output
120V: 4.2A (500W) Electronic Ballast CFL, LED Driver)
120V: 4.24A (500W) Tungsten
277V: 1.81A (500W) Tungsten
120V: 2.2A (264VA) Standard Ballast (Magnetic Ballast)
277V: 1.8A (500VA) Standard Ballast (Magnetic Ballast)
120V: 4.2A (500W) Resistive or Inductive
0-10V SELV: Limited Energy (Class 2) 0-10V Dim output
Surge Protection
6 kV
Wireless Range
Line-of-Site
1000 ft
Obstructions
100 ft
Construction
Operating Temperature Range
-35°C - 60°C
Wire Gauge
Cable Gauge: UL 1015 18AWG (Black, White, Red)
0-10V Dimming: 22AWG (Gray, Purple)
0-10V Dimming: 22AWG (Gray, Purple)
Installation
Mounting
In a lighting fixture
Other
Warranty
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
