KNOOK8Y
KNOOK8Y
- Simple to connect multiple fixtures
- Available in four sizes (8", 16", 24" and 32") and two color finishes (white & brown)
- Compatible with common ELV & TRIAC dimmers
Performance
| Watts | 5W |
| Color Temp | 3000K (Warm) |
| Lumens | 270 lm |
| Efficacy | 65.9 lm/W |
| Color Accuracy | 95 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.04A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 4.1W |

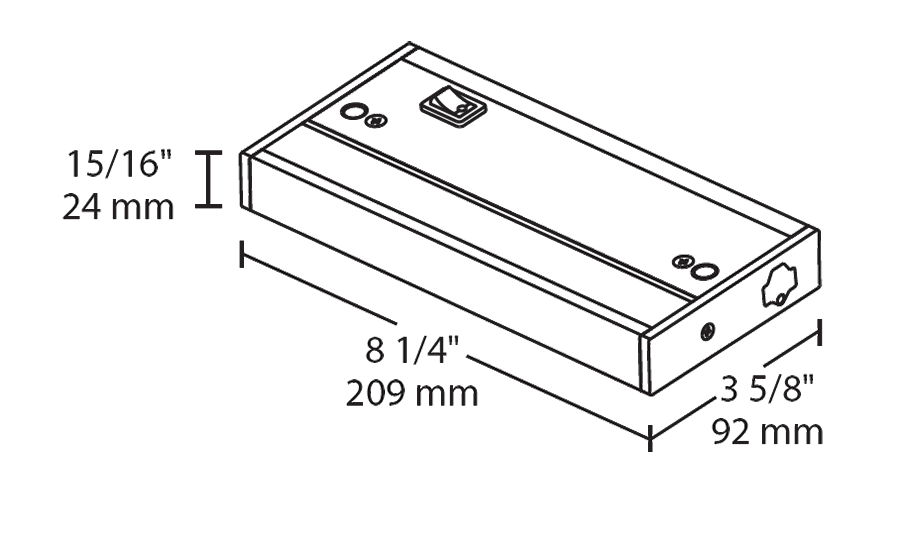

Dimensions
Weight: 1.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 20W Halogen or 5W Fluorescent
Construction
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Die-formed steel with injection-molded endcaps
Lens
Frosted polycarbonate diffusion lens
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Undercabinet surface
Electrical
Driver
Constant Current, Class 2, 60 Hz, 120V: 0.04A
THD
22.7% at 120V
Power Factor
90.8% at 120V
