HS45-A
HS45-A large main
  • Available in bronze and white and 45 or 90 degree angles
  • Fits 1/2" NPS
 View Technical Specs
View Price & Availability
Dimensions

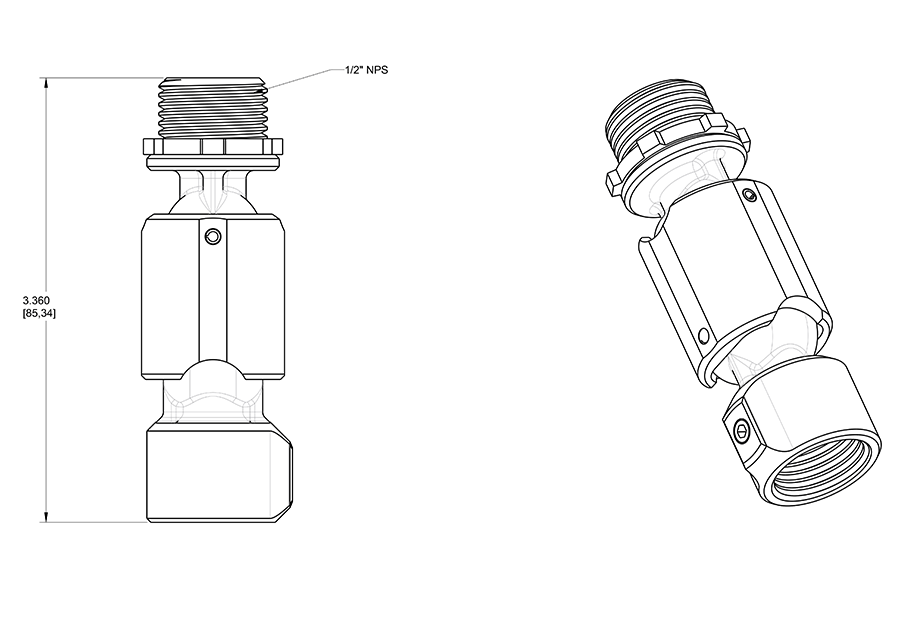

Link to Dimension Drawing

Weight: 0.2 lbs

Technical Specifications
Performance
Description

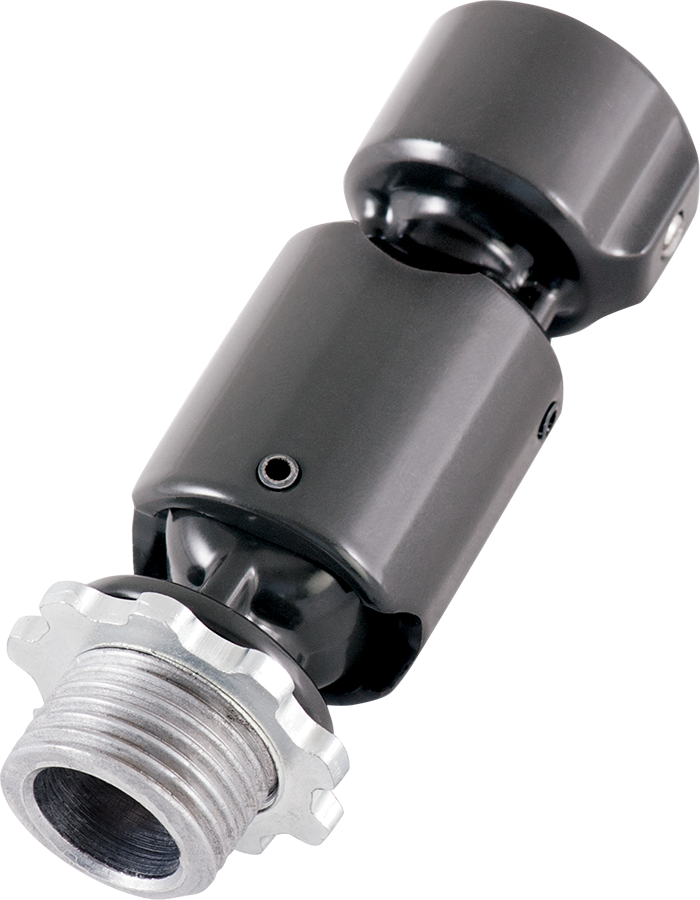

Hang straight 45° 1/2" NPS swivel mount sloped ceiling.
Construction
Maximum Weight
HS45 suspends a light fixture with a maximum weight of 70 lbs
Application
For indoor use only. Accessory is not rated for use in high-vibration environments.
Material
Precision die cast aluminum
Finish
Formulated for high durability and long-lasting color
Electrical
THD
11.5% at 120V, 21% at 277V
