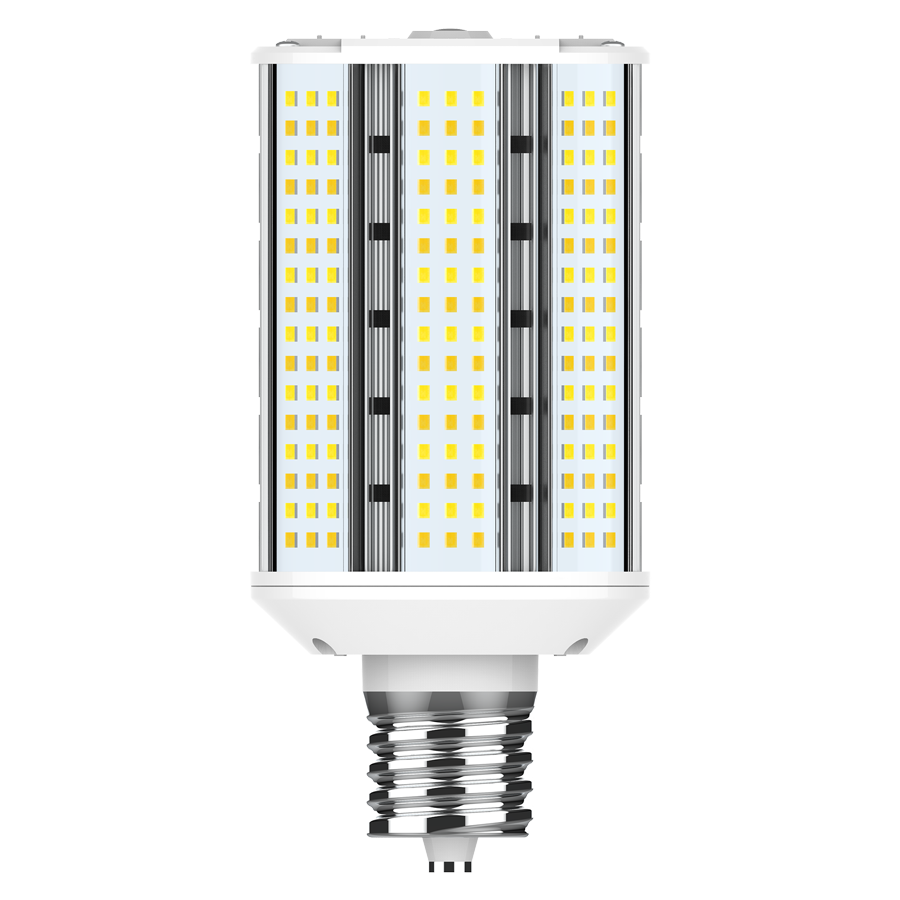

HIDFA-30S-H-EX39-8CCT-BYP
HIDFA-30S-H-EX39-8CCT-BYP
- Replaces traditional metal halide or high pressure sodium HID lamp
- Adjustable wattage and CCT allows for in-field customization
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed fixtures in dry or damp locations
- 4kV surge protection built in
- 50,000-Hour lifespan
- Environmentally friendly, no mercury used
- UL Listed, DLC Listed (select models)
- 5-Year, No-Compromise Warranty
Performance
| Watts | 10/20/30W |
| Color Temp | 3000/4000/5000K |
| Lumens | 1600/3200/4800 lm |
| Efficacy | 160 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | <30% |
| THDi | <20% |
Dimensions
Weight: 1.8 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
10W/20W/30W
Lumens
1,600/3,200/4,800lm
Efficacy
160lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
150W Metal Halide or High Pressure Sodium
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
LED Characteristics
Color Temperature
3000/4000/5000K CCT Adjustable
Color Accuracy (CRI)
>80 CRI
Beam Angle
180°
Electrical
THD
<20%
Power Factor
>0.9
Dimmable
Yes
Flicker
<30%
Operating Temperature
-30°C to 60°C
Input Voltage
100-277V
Operating Frequency
50/60Hz
Construction
Shape
Wall Pack
Endcap Material
Metal
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Installation
Base Type
EX39
Installation Orientation
Horizontal
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
