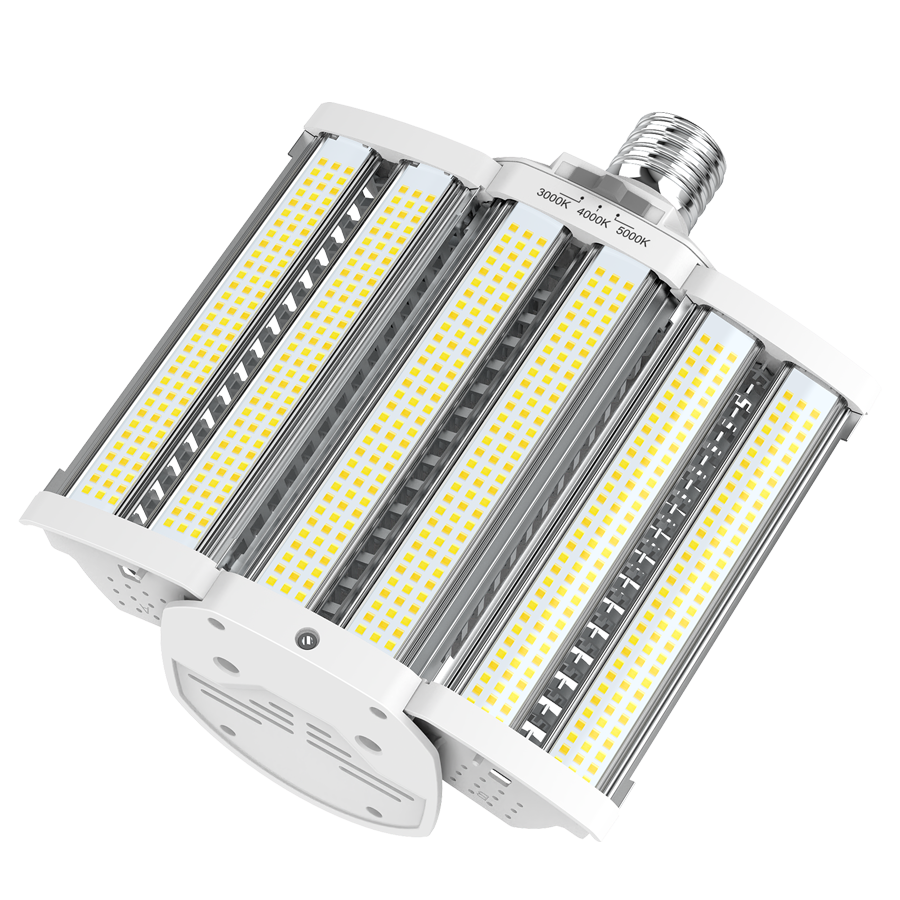

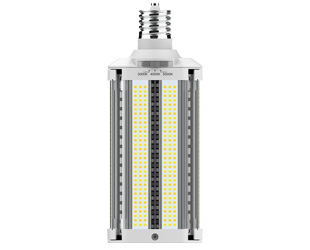

HIDFA-110-H-EX39-8CCT-BYP/5SP
HIDFA-110-H-EX39-8CCT-BYP/5SP
- Replaces traditional metal halide or high pressure sodium HID lamp
- Adjustable CCT allows for in-field customization
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed fixtures in dry or damp locations
- AUX port for integrating individual, lamp-level controls
Performance
| Watts | 110W |
| Color Temp | 3000/4000/5000K |
| Lumens | 15,400/16,500/15,950 lm |
| Efficacy | 140/150/145 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | <30% |
| THDi | <20% |
Dimensions
Weight: 4.2 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Description
CCT field adjustable horizontal and expandable LED lamps that make great replacements for high output area lights
Wattage Equivalency
400W Metal Halide
Input Wattage
110W
Lumens
15,400/16,500/15,950lm
Efficacy
140/150/145lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes
Input Voltage
100-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
945mA
Input Current @ 240V (mA)
504mA
Input Current @ 277V (mA)
441mA
Operating Temperature
-22°F to 140°F (-30°C to 60°C)
Flicker
<30%
Surge Protection
4 kV
LED Characteristics
Color Temperature

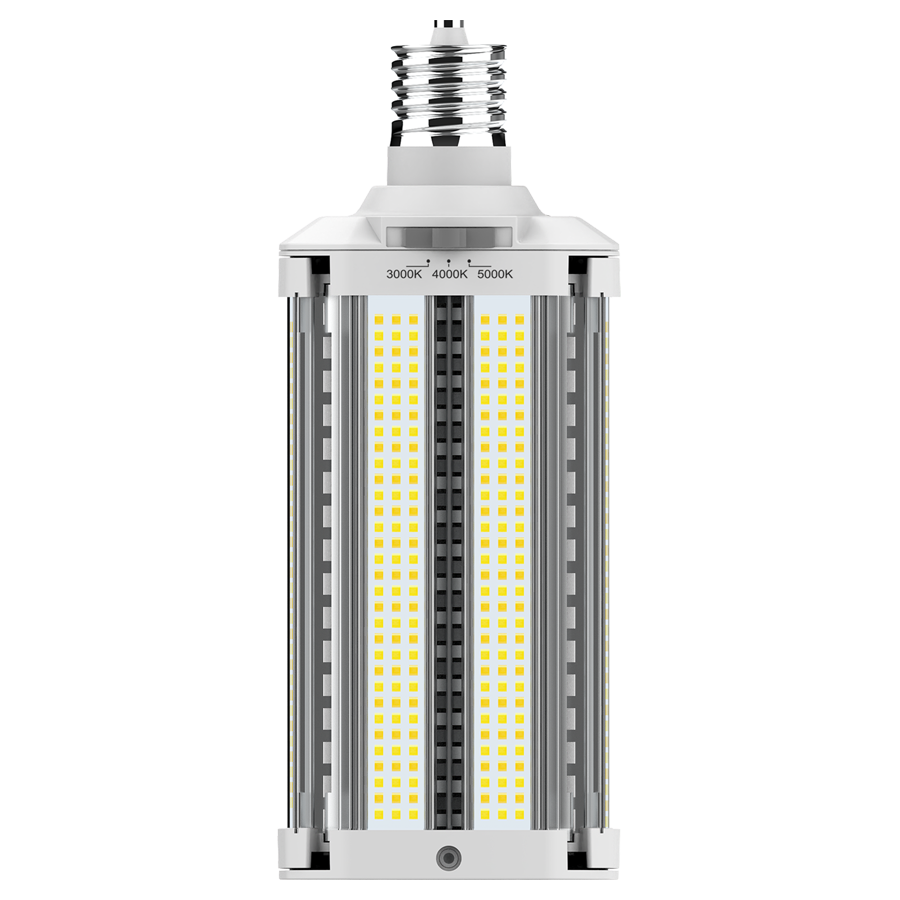

Field adjustable via dip switch 3000/4000/5000K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 no greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Installation Orientation
Horizontal
Base Type
EX39 Exclusionary Mogul
Construction
Finish
Clear
Shape
Post Top
Endcap Material
Metal
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use in dry and damp environments
Fixture Rating
Suitable for use in enclosed fixtures
IP Rating
IP64
Energy Star Approved
No.
There is no product category on Energy Star for this lamp to qualify under.
There is no product category on Energy Star for this lamp to qualify under.
Certification Model Number
H20045(HIDFA-110-H-EX39-8CCT-BYP/5SP)
T20 Compliant
Not compliant
California Title 24 JA8 Compliant
Not Compliant
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
