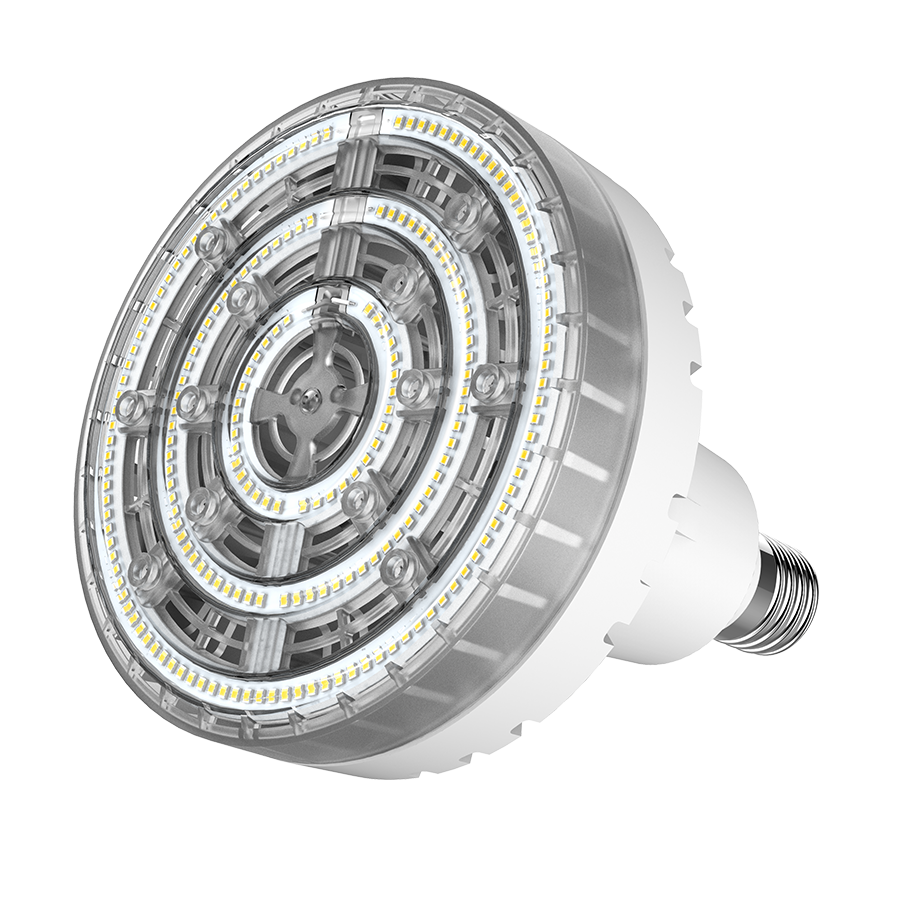

HID-80-V-EX39-850-BYP-HB-ECO

Spec Sheet Sensor Compatibility List Photometrics Report Instructions FCC Caution Spec Sheet

Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Rated for use in enclosed and open fixtures in dry or damp locations

4kV surge protection built in

50,000 hour Lifespan

Environmentally friendly, no mercury used

UL Listed, UL Classified, DLC Listed

Lamp includes on board low-voltage AUX port for lamp level sensor accessories

5 Year Limited Warranty

Compatible with RAB specified 0-10V dimming system

View Technical Specs

View Price & Availability

Performance

Watts	80W
Color Temp	5000K
Lumens	10,800 lm
Efficacy	135
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	100-277V
Power Factor	>0.9
Flicker	N/A
THDi	<20%

Dimensions

Weight: 3.1 lbs

Technical Specifications

Performance

Product Type

HID Replacement

Input Wattage

80W

Lumens

10,800lm

Efficacy

135lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

250W

Dimming

Compatible with RAB specified 0-10V dimming system. Dimming capabilities were tested and verified on Legrand RH4FBL3PTC 0-10V dimming system.

LED Characteristics

Color Accuracy (CRI)

Color Temperature

5000K

Construction

Shape

High Bay

Enclosure Material

Polycarbonate & Metal heat sink

Housing Finish

White

Installation

Base Type

EX39

Installation Method

UL Type B, Ballast Bypass

Burning Position

Base Up

Electrical

THD

<20%

Power Factor

>0.9

Input Voltage

100-277V

Operating Frequency

60 Hz

Operating Temperature

-30°C to 60°C

Surge Protection

4 kV

Other

Technology EQ

Metal Halide or High Pressure Sodium

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

Listings

UL Listed, UL Classified

Environment

Damp / Enclosed

IP Rating

IP64

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Certification Model Number

H10036(HID-80-V-EX39-850-BYP-HB-ECO)

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PLMX58WXO6X9
