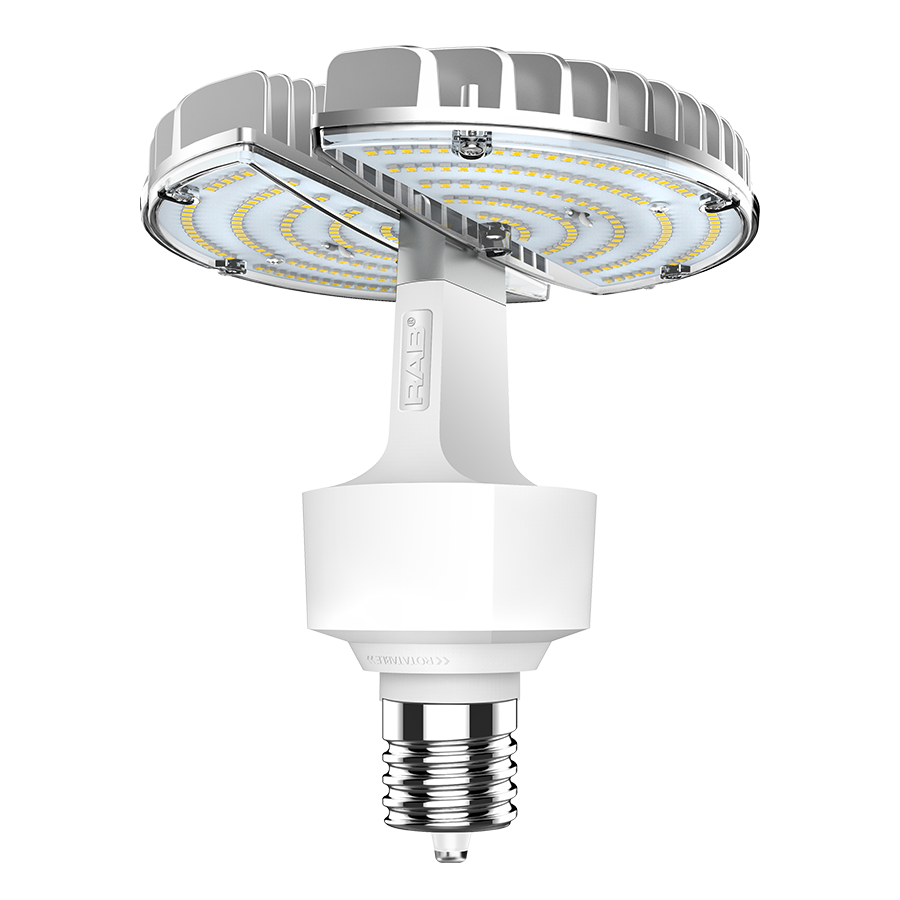

HID-70-EX39-840-BYP-ADJ
HID-70-EX39-840-BYP-ADJ
- Replacement for traditional Metal Halide or High Pressure Sodium HID Lamps up to 400W
- Multiple angle configurations ideal for low/high bay, shoebox, and post top applications
- Active Cooling: Internal sensor overheat and engaged will automatically reduce output to 70% rated wattage until the sensor cools and will light up again to 100%
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed and open fixtures in dry or damp locations
- 4kV surge protection built in
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, DLC Listed
- 5 Year No Compromise Warranty
- Lamp includes on board low-voltage AUX port for lamp level sensor accessories
- Compatible with RAB specified 0-10V dimming system
Performance
| Watts | 70W |
| Color Temp | 4000K |
| Lumens | 10,500 lm |
| Efficacy | 150 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | <20% |
Dimensions
Weight: 2.8 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
70W
Lumens
10,500lm
Efficacy
150lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
250W
Dimming
Compatible with RAB specified 0-10V dimming system. Dimming capabilities were tested and verified on Legrand RH4FBL3PTC 0-10V dimming system.
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
4000K
Construction
Shape
Post Top/ High Bay / Shoebox
Enclosure Material
Polycarbonate & Metal heat sink
Housing Finish
White
Installation
Base Type
EX39
Installation Method
UL Type B, Ballast Bypass
Burning Position
Universal
Electrical
THD
<20%
Power Factor
>0.9
Input Voltage
100-277V
Operating Frequency
60 Hz
Operating Temperature
-30°C to 60°C
Surge Protection
4 kV
Other
Technology EQ
Metal Halide or High Pressure Sodium
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed, UL Classified
Environment
Damp / Enclosed
IP Rating
IP64
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
H10026(HID-70-EX39-840-BYP-ADJ)
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
