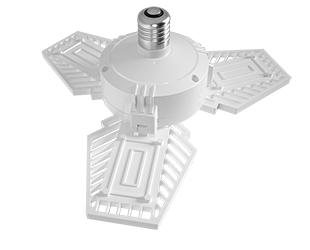

HID-65-V-E26-850-BYP-GL

Spec Sheet IES File LM79 Instructions FCC Caution Spec Sheet EZ Layout

HID-65-V-E26-850-BYP-GL

UL Damp Rated

25,000-hour LED lifespan

3-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	65W
Color Temp	5000K (Cool)
Lumens	8,000 lm
Efficacy	125
Color Accuracy	80 CRI
L70 Lifespan	25,000 Hours

Input Voltage	120-277V
Power Factor	>0.9
Flicker	Yes
THDi	0.2

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.4 lbs

Technical Specifications

Performance

Product Type

HID Replacement

Input Wattage

65W

Lumens

8,000lm

Efficacy

125lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

200W Metal Halide or High Pressure Sodium

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

5000K

Color Accuracy (CRI)

80 CRI

Beam Angle

120°-270° adjustable

Construction

Shape

Deformable

Endcap Material

Polycarbonate

Enclosure Material

Aluminum

Installation

Base Type

E26 Edison

Installation Orientation

Vertical

Electrical

THD

20%

Power Factor

>0.9

Operating Temperature

-35°C to 40°C

Input Voltage

120-277V

Operating Frequency

50/60Hz

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
