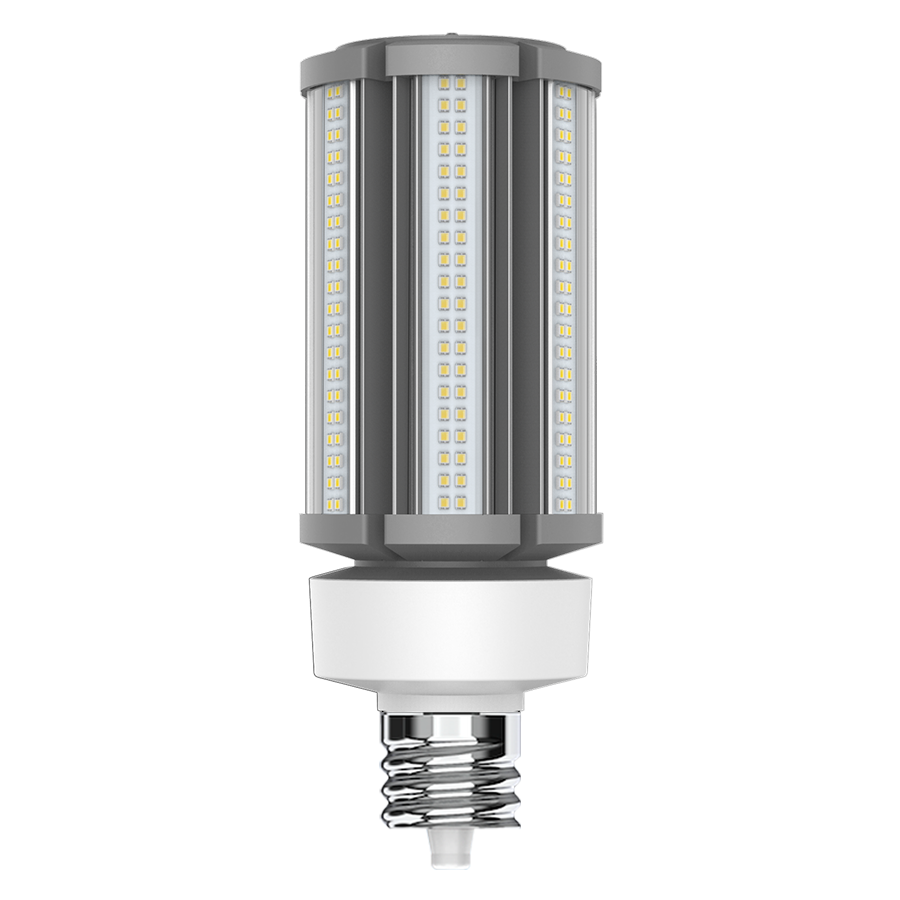

HID-54-EX39-850-BYP/3SP
HID-54-EX39-850-BYP/3SP
- Replaces traditional metal halide or high pressure sodium HID lamp
- Lamp includes on board low-voltage AUX port for lamp level sensor accessories
- Rated for use in enclosed and open fixtures in dry or damp locations
- 4kV surge protection built in
- 50,000-Hour lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 54W |
| Color Temp | 5000K |
| Lumens | 8,100 lm |
| Efficacy | 150 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | <30% |
| THDi | <20% |
Dimensions
Weight: 1.9 lbs
Technical Specifications
Performance
Product Type
HID Replacement
Input Wattage
54W
Lumens
8,100lm
Efficacy
150lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
200W Metal Halide or High Pressure Sodium
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
Certification Model Number
H10070(HID-54-EX39-850-BYP/3SP)
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
LED Characteristics
Color Temperature
5000K
Color Accuracy (CRI)
>80 CRI
Beam Angle
360°
Electrical
THD
<20%
Power Factor
>0.9
Dimmable
Yes
Flicker
<30%
Operating Temperature
-30°C to 60°C
Input Voltage
100-277V
Operating Frequency
50/60Hz
Construction
Shape
Post top (sensor)
Endcap Material
Metal
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Installation
Base Type
EX39
Installation Orientation
Vertical and Horizontal
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
