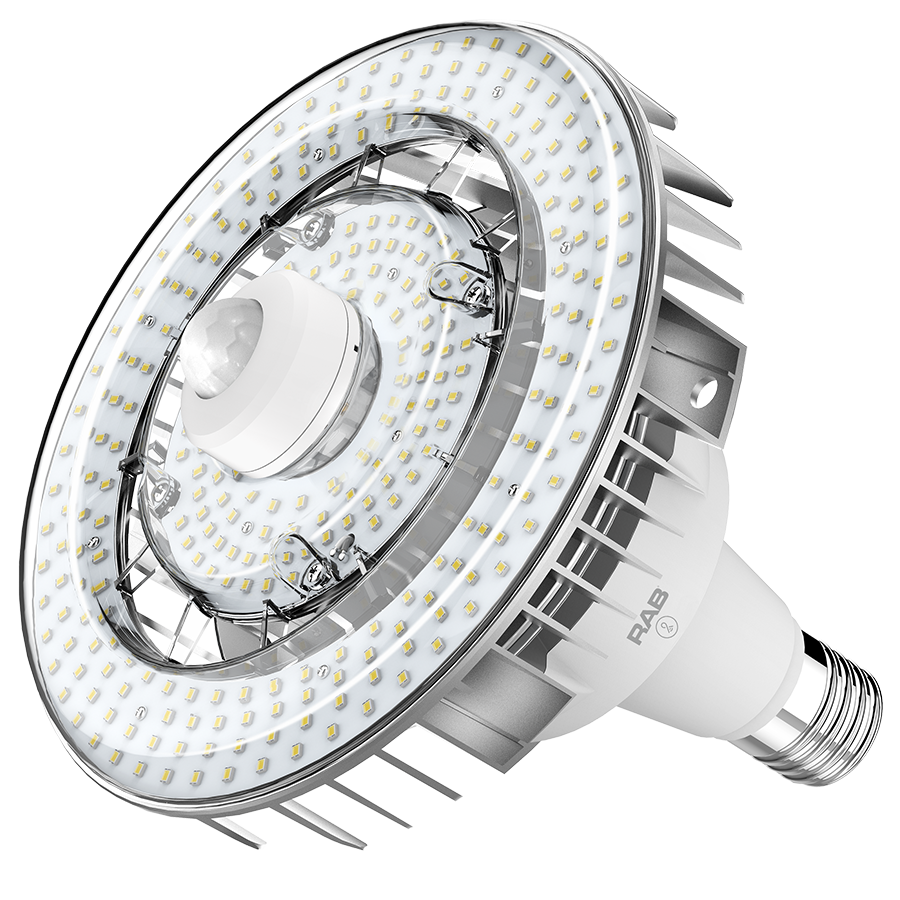

HID-115-V-EX39-850-BYP-HB/LCS
Performance
| Watts | 115W |
| Color Temp | 5000K |
| Lumens | 15,500 lm |
| Efficacy | 134.8 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 100-277V |
| Power Factor | >0.9 |
| Flicker | <30% |
| THDi | <20% |
Dimensions
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Enabled
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Gateway Required
Yes, connects to Lightcloud Gateway and other Lightcloud devices
Performance
Product Type
HID Replacement
Input Wattage
115W
L70 Lifespan
50,000 Hours
Wattage Equivalency
400W Metal Halide
Construction
Shape
High Bay
Finish
White
Installation
Base Type
EX39
Installation Orientation
Vertical
Installation
Lightcloud module provied inside the package must be installed into the lamp prior to installation. Module plugs into the top of the lamp via 3.5MM Auxiliary port.
LED Characteristics
Beam Angle
120°
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Communication Protocol
Zigbee
Electrical
THD
<20%
Power Factor
>0.9
Input Voltage
100-277V
Operating Frequency
50/60Hz
Power Monitoring
Yes, TRIAC Dimming - Forward and Reverse Phase dimming. Please refer to dimmer compatibility chart.
Surge Protection
10 kV
Operating Current
20mA
Compliance
Damp Rated
Suitable for damp locations
UL Listed
Yes
Enclosed Fixtures
Suitable for use in enclosed fixtures
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
FCC
Yes
Sensor Settings
Occupany Sensor
Passive Infrared Motion Sensor
Daylight Harvesting
Yes
Input Voltage
12V
Output Voltage
0-10V
Max Mounting Height
20 ft.
Rating
IP20
Wireless Range
Line-of-Site
700 ft
Obstructions
70 ft
