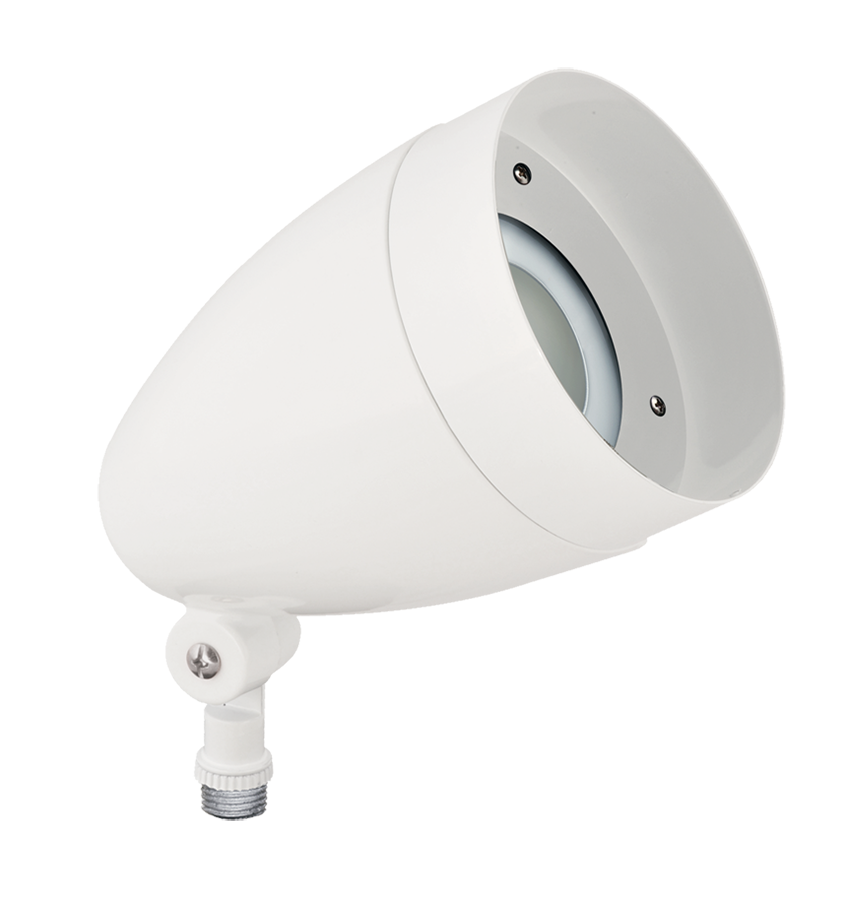

HBLED13DCW

Spec Sheet IES File LM79 Spec Sheet EZ Layout

HBLED13DCW

Low voltage DC

Ideal for solar applications

Up to 85% more energy efficient

No energy-loss from DC-AC inverter

Enables off-grid, remote-area lighting

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	13W
Color Temp	5000K (Cool)
Lumens	724 lm
Efficacy	47.3 lm/W
Color Accuracy	61 CRI
L70 Lifespan	100,000 Hours

Type	DC to DC
120V
208V
240V
277V
Input Watts	15.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.2 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for ground mounting.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Multi-chip 13 watt, high-output, long-life LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Temperature

5000K

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Electrical Input Specifications

MaxW = 15W. Input Volts = 10-30 VDC. Operating Amps = 1.5 - 0.5A.

Construction

Cold Weather Starting

The minimum starting temperature is -22°F (-30°C)

Housing

Die-cast aluminum housing, hood and mounting arm

Swivels

Fully adjustable with sure-grip locks. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting covers. Color matched EZ Grip lock nuts. Stainless steel screw.

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Heavy-duty arm with "O" ring seal and stainless steel screws

Optical

Reflector

Specular aluminum. NEMA 5x5 floodlight reflector with 4x4 optional spotlight reflector for field installation. Photometrics show flood configuration.

Other

Patents

The design of the LFLOOD is protected by US patents pending in US., Canada, China, Taiwan & Mexico.

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Equipment

Solar panel, battery and controls by others
