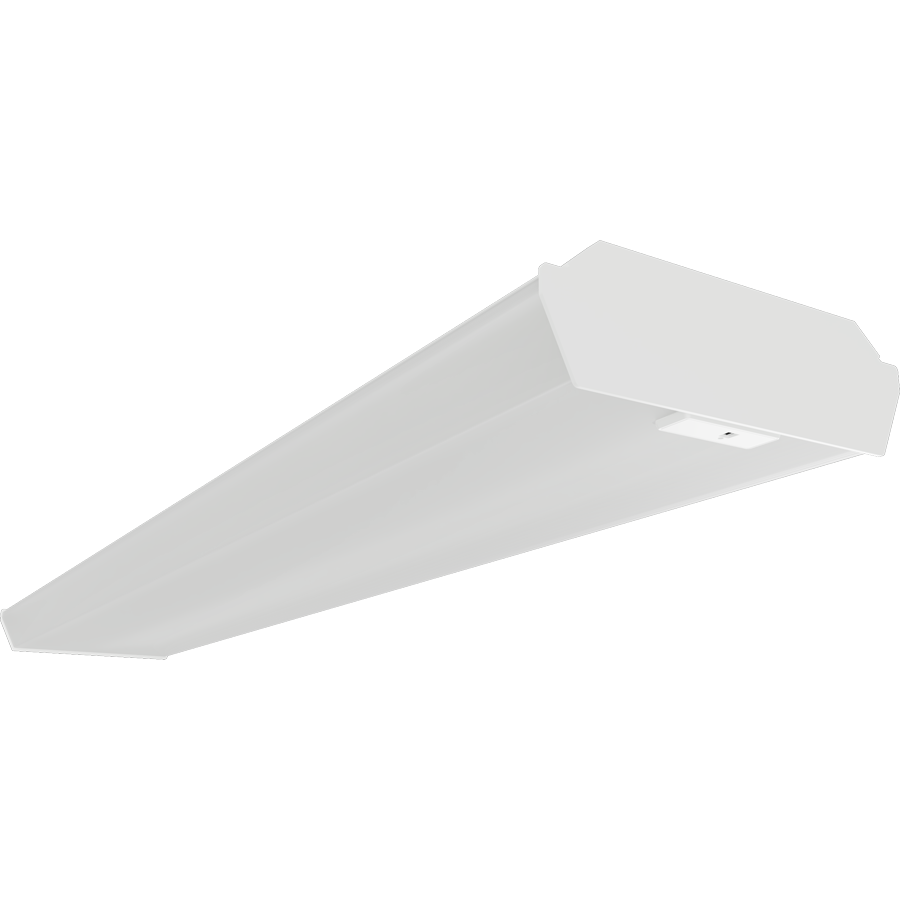

GUS4/MVS/E

50W 3000/3500/4000/5000/6500K

Affordable, easy to use LED wrap fixture

0-10V dimming, standard

100,000-Hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	50/40/30W
Color Temp	3000/3500/4000/5000/6500K
Lumens	4424-7332 lm
Efficacy	141-154.7 lm/W
Color Accuracy	82-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant
120V	0.42A/0.33A/0.25A
208V	0.24A/0.19A/0.16A
240V	0.21A/0.17A/0.14A
277V	0.18A/0.15A/0.12A
Input Watts	29.2-51.2W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
50/40/30W (factory default 50W)
Color Temperature Adjustable:
3000K, 3500K, 4000K, 5000K and 6500K(factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Aux Power Supply

Yes

Dim to Off

Yes

Surge Protection

2 kV + 4 kV

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Light Distribution

115°

Construction

Cold Weather Starting

The minimum starting temperature is 32°F/0°C

Maximum Ambient Temperature w/Battery Backup

Suitable for use in up to 104°F (40°C)

Housing

Iron

Reflector Material

Iron

Lens

Bio-based Polymethy Methacrylate (PMMA) lens

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Surface mount. Can be mounted with v-hooks (ordered separately).

Sensor Settings

Capacitance Load

400VA at 120VAC, 800VA at 230VAC, 1000VA at 277VAC

Operating Temperature

-4°F to +140°F(-20°C to +60°C )

Relay

Zero-cross relay

Maximum Mounting Height

16.4 ft

Customizable Detection Area

10, 50, 75 or 100%

Time Delay

5s, 30s, 1min, 5min, 10min, 20min, 30min

Cut Off Period

0s, 10s, 1min, 5min, 10min, 30min, 1hr, Bi-Level

Cut-Off Dimming level

10, 20, 30, 50%

Cut-Off Power

Less than 1W

Daylight Threshold

Disable/400Lux/350Lux/300Lux/250Lux/200Lux/120Lux/ 80Lux/50Lux/30Lux/10Lux/2Lux

Sensor Principle

High Frequency

Microwave Frequency

5.8GHz +/- 75MHz

Microwave Power

<0.3mW

Max Detection Range

26 ft diameter at 16 ft mounting height

Detection Angle

About 30 to 150 degrees

Remote Control Accessory

Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
