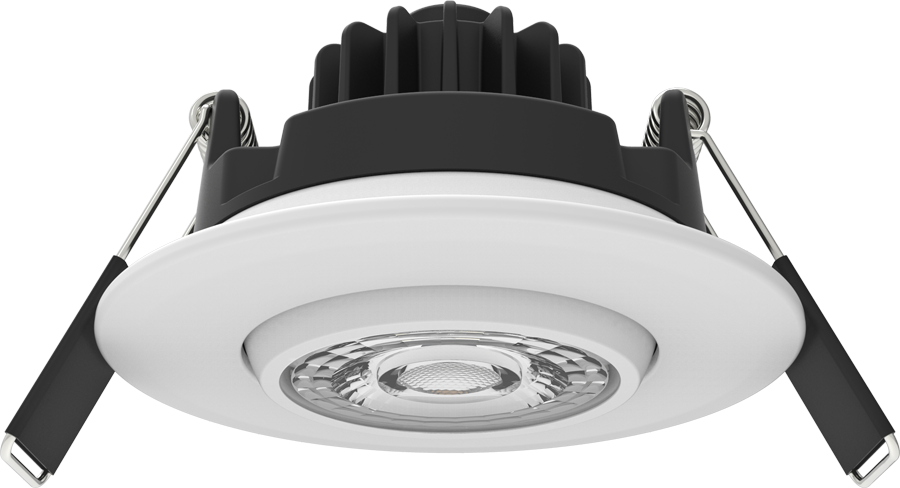

G3R8940120W
G3R8940120W
- Adjustable lens with 32 degree tilt and 360 degree rotation
- No recessed housing or J-box required
- New construction or retrofit applications
- UL wet location rated
- Spring loaded retention clips
- Robust, die cast aluminum construction
- IC and airtight rated
- 5-Year, No-Compromise Warranty
Performance
| Watts | 8W |
| Color Temp | 4000K (Neutral) |
| Lumens | 618 lm |
| Efficacy | 75 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.115A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 8W |

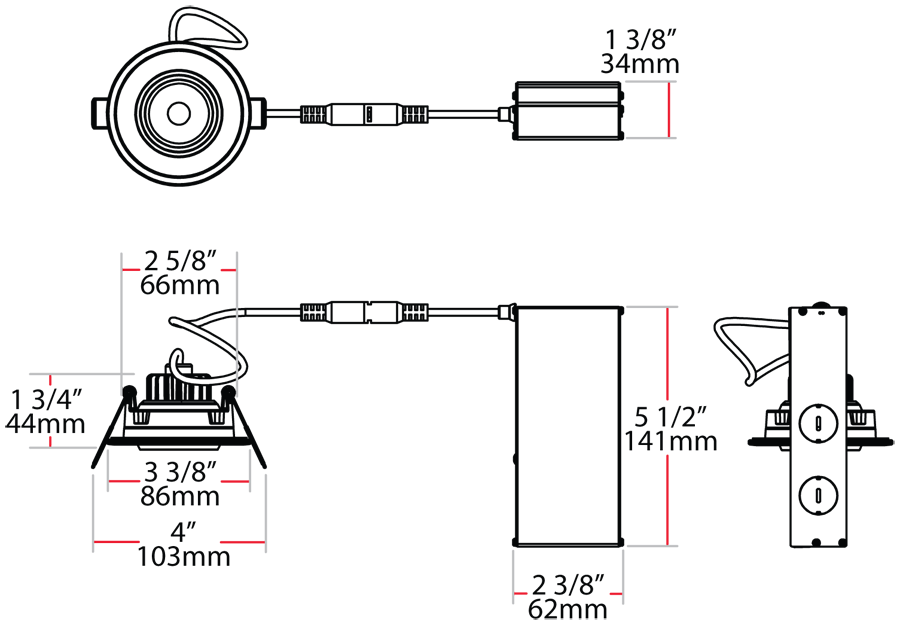

Dimensions
Weight: 0.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLG0006
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
Electrical
Dimming Driver
TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.
Power Factor
≥0.9
Remote Driver
Die-cast metal driver / junction box with a hinged cover.
Listed for 12AWG and 14AWG conduit.
Includes two metal knockouts for wiring.
Quick connectors included.
Plenum rated cable connector to connect from module to remote driver box.
Listed for 12AWG and 14AWG conduit.
Includes two metal knockouts for wiring.
Quick connectors included.
Plenum rated cable connector to connect from module to remote driver box.
