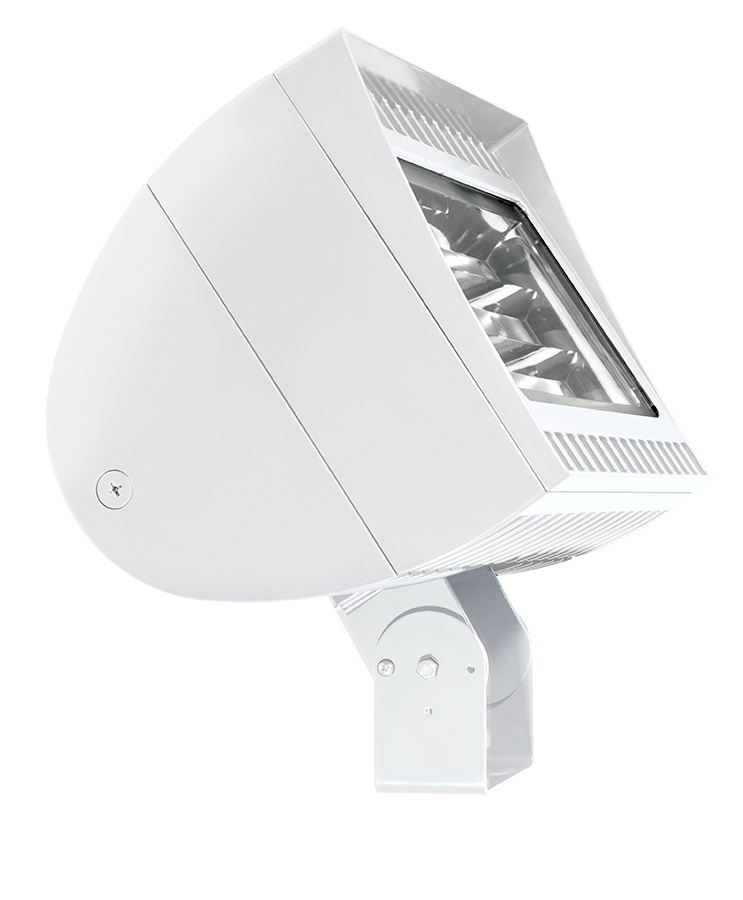

FXLED300TB33W/D10
FXLED300TB33W/D10
- 300W replaces 1000 MH floodlights
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 300W |
| Color Temp | 5000K (Cool) |
| Lumens | 40,644 lm |
| Efficacy | 126.6 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 2.65A |
| 208V | 1.59A |
| 240V | 1.38A |
| 277V | 1.17A |
| Input Watts | 321.1W |
Dimensions
Weight: 66.1 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Optical
NEMA Type
NEMA Beam Spread 3H x 3V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 1,000W Metal Halide
LED Characteristics
LEDs
Multip-chip, high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Effective Projected Area
EPA = 4
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Lens
Tempered glass lens
Housing
Die-cast aluminum housing and door frame
Reflector
Specular and semi-specular vacuum-metalized polycarbonate
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Heavy-duty Trunnion mount with stainless steel hardware
Electrical
Drivers
Constant Current, 1050mA, 50/60 Hz, 120-277V, 4 kV surge protection, 120V: 2.65A, 208V: 1.59A, 240V: 1.38A, 277V: 1.17A, THD <20%, Power Factor: 99%
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
9.76% at 120V, 12.2% at 277V
Power Factor
99.3% at 120V, 96.6% at 277V
