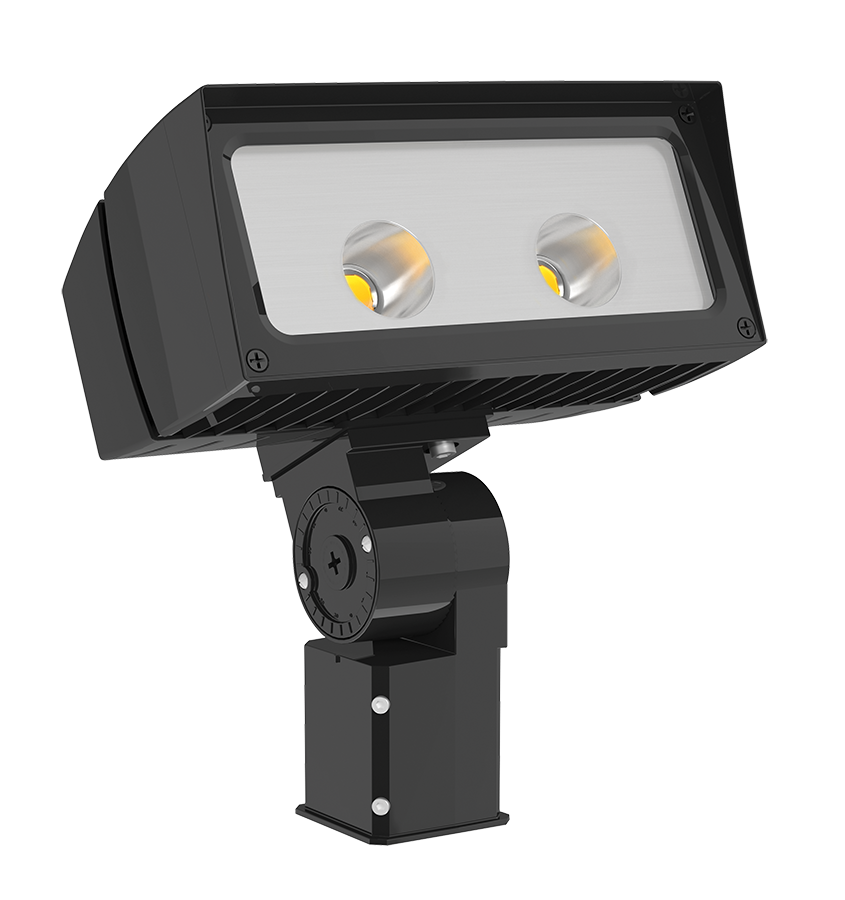

FFLED39SFNB55/480

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

FFLED39SFNB55/480

Ultra-efficient LED and optical design

Replaces 150W MH floodlights

100,000-hour life based on LM-80 results and TM-21 calculations

"Air-Flow" technology heatsink

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	39W
Color Temp	4000K (Neutral)
Lumens	5,027 lm
Efficacy	123.2 lm/W
Color Accuracy	74 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	40.8W

EZ-Layout

Create Custom Lighting Layout

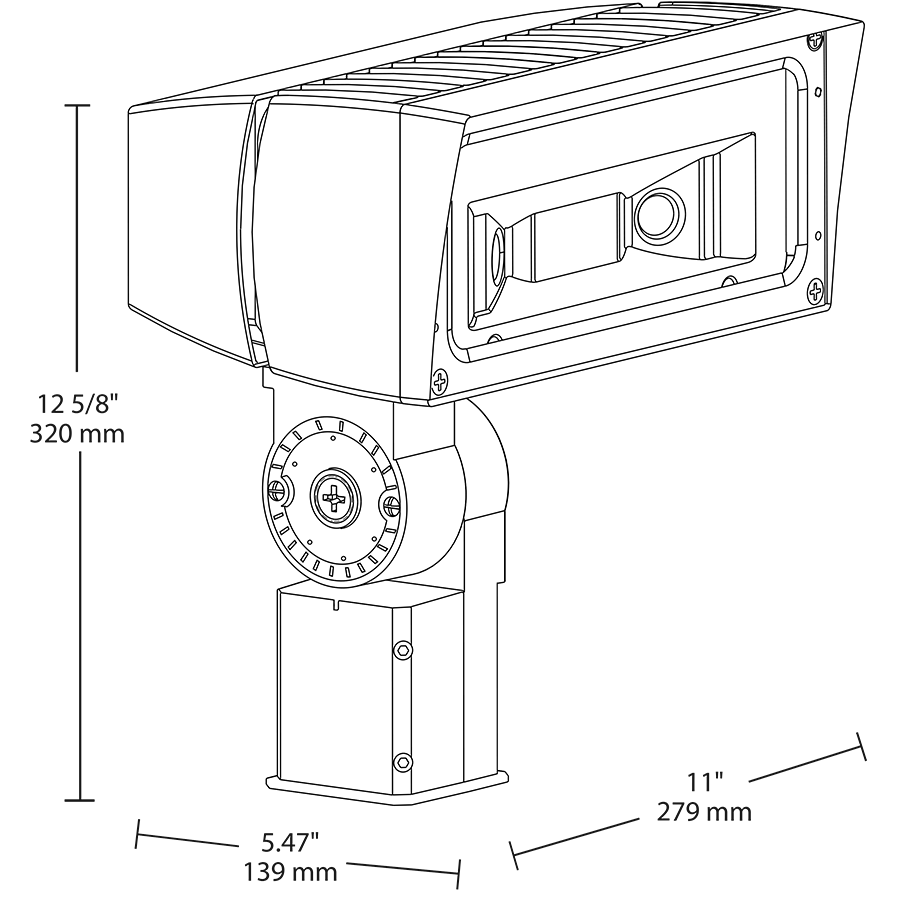

Dimensions

Weight: 12.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

IP Rating

Ingress protection rating of IP66 for dust and water

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 150W Metal Halide

Construction

Lens

Soda lime silica clear glass

Housing

Die-cast aluminum housing, lens frame and mounting arm

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Effective Projected Area (EPA)

EPA = 0.75

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Formulated for high durability and long-lasting color

Tilt Increment

Rotates in 6 degree increments

Installation

Mounting

Heavy-duty Slip Fitter for 2 3/8" OD pipe

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Optical

NEMA Type

NEMA Beam Spread 5H x 5V

Electrical

Driver

Constant Current, Class 2, 480V, 50-60Hz, 480V: 0.12A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

5.89% at 480V

Power Factor

96.2% at 480V

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Patents

The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
