EZPANFA2X2/D10/LCBS/MVS
EZPANFA2X2/D10/LCBS/MVS
- 100,000-hour LED Lifespan
- DLC Standard Listed
- 5-Year, No-Compromise Warranty
Performance
| Watts | 30W |
| Color Temp | Field Adjustable |
| Lumens | 3117-4802 lm |
| Efficacy | 106.6-127.5 lm/W |
| Color Accuracy | 79-81 CRI |
| L70 Lifespan | 75,000 Hours |
| Type | Constant Current |
| 120V | 0.25A |
| 208V | 0.15A |
| 240V | 0.13A |
| 277V | 0.12A |
| Input Watts | 25.7-41.5W |
Dimensions
Weight: 8.2 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
2' x 2': 40W/30W/25W (factory default 30W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
2' x 2': 40W/30W/25W (factory default 30W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Performance
Lifespan
75,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Edge-lit design with long-life, high-efficacy LEDs
Construction
Operating Temperature
-30°C (-22°F) to 40°C (104°F)
Lens
Frosted polystyrene
IC Rated
Suitable for insulated ceilings
Housing
Lightweight aluminum housing
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed ceiling
Sensor Settings
Default Setting
Uncommissioned State:
Sensor Status: Enabled
Motion Sensitivity: High
Brightness when triggered: 100%
Hold time: 1 minute
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Commissioned State:
Sensor Status: Disabled, once enabled the following default are set.
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
When vacant: Off
Sensor Status: Enabled
Motion Sensitivity: High
Brightness when triggered: 100%
Hold time: 1 minute
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Commissioned State:
Sensor Status: Disabled, once enabled the following default are set.
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
When vacant: Off
Sensing Type
Occupancy or Vacancy
Occupied Actions
On or On at a Dim Level
Vacant Options
Off or On at a Dim Level
Occupancy Timeout
1 minute to 240 minutes
Daylight Sensing
The sensor will determine to trigger the light(s) on or not based on the daylight threshold level set in the Lightcloud Blue mobile app.
Daylight Threshold
150 lux to 1500 lux
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
THD
5.8% at 120V, 11.03% at 277V
Power Factor
99.4% at 120V, 92.3% at 277V
Recently Viewed Products
EZPANFA2X2/D10/LCBS/MVS
Panels & Troffers 3117-4802 Lumens Ezpan 2X2 Field Adjustable 40/30/25W 3500/4000/5000K 0-10V Dimming 120V-277V Lightcloud Blue Sensor Microwave Sensor

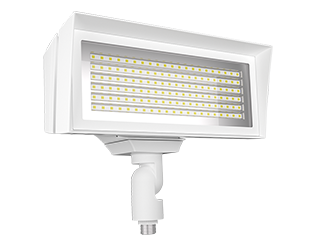

FFLEDMW/PCU
