EZLED78SFN/PCT
EZLED78SFN/PCT
- High powered narrow beam spotlight
- Illuminates objects at a distance of 80 feet
- Available in NEMA type 3H x 3V and 4H x 4V
- Trunnion or slipfitter mounting options available
- Outperforms equivalent MH fixtures
Performance
| Watts | 78W |
| Color Temp | 4000K (Neutral) |
| Lumens | 9,143 lm |
| Efficacy | 101.6 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.82A |
| 208V | 0.53A |
| 240V | 0.46A |
| 277V | 0.40A |
| Input Watts | 90W |
Dimensions
Weight: 25.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Construction
Effective Projected Area
EPA = 1.2
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Housing
Precision die-cast aluminum housing and door frame
Lens
Tempered glass
Reflector
Vacuum-metalized, specular thermoplastic
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Tilt Increment
Rotates in 6 degree increments
LED Characteristics
LEDs
Three multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Installation
Mounting
2 3/8" slipfitter mount with stainless steel hardware
Optical
NEMA Type
NEMA Beam Spread 3H x 3V
Electrical
Driver
3x26W drivers Constant current, Class2, 100-277V. 50/60 Hz, 6KV Surge Protection, 720mA, 100-277V 0.4A, Power Factor 99%.
Photocell
120V-277V Twistlock photocell included
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The design of EZLED is protected by patents in U.S. Pat D679,856, and pending patents in Canada, China, Taiwan and Mexico.
Recently Viewed Products
EZLED78SFN/PCT
Floodlights 9143 Lumens Ezled 78W Slipfitter Mount 4000K Nema 3Hx3V 120V-277V Twistlock Photocell Bronze

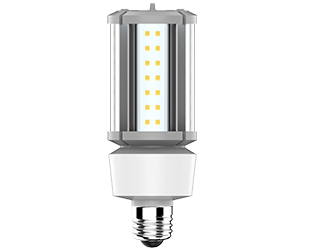

HIDFA-18S-E26-850-BYP
