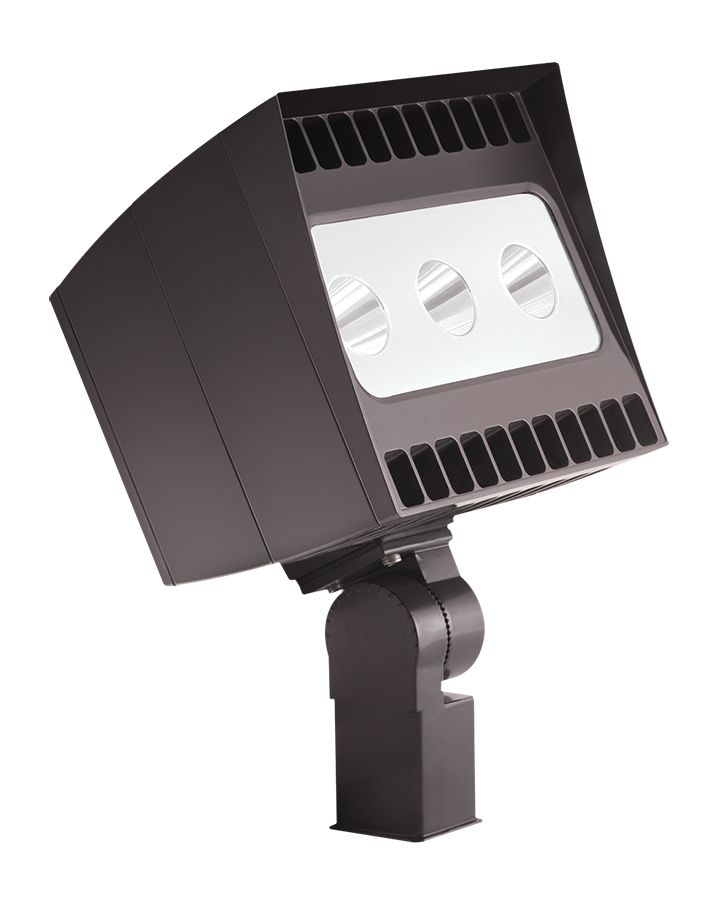

EZLED78SF

High powered narrow beam spotlight

Illuminates objects at a distance of 80 feet

Available in NEMA type 3H x 3V and 4H x 4V

Trunnion or slipfitter mounting options available

Outperforms equivalent MH fixtures

View Technical Specs

View Price & Availability

Performance

Watts	78W
Color Temp	5000K (Cool)
Lumens	8,859 lm
Efficacy	99.2 lm/W
Color Accuracy	68 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.82A
208V	0.53A
240V	0.46A
277V	0.40A
Input Watts	89.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 25.5 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for ground mounting.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Construction

Effective Projected Area (EPA)

EPA = 1.2

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Thermal Management

Superior thermal management with external "Air-Flow" fins

Housing

Precision die-cast aluminum housing and door frame

Lens

Tempered glass

Reflector

Vacuum-metalized, specular thermoplastic

Gaskets

High-temperature silicone

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Tilt Increment

Rotates in 6 degree increments

LED Characteristics

LEDs

Three multi-chip, high-output, long-life LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Installation

Mounting

2 3/8" slipfitter mount with stainless steel hardware

Optical

NEMA Type

NEMA Beam Spread 3H x 3V

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Patents

The design of EZLED is protected by patents in U.S. Pat D679,856, and pending patents in Canada, China, Taiwan and Mexico.

Electrical

Driver

3x26W drivers Constant current, Class2, 100-277V. 50/60 Hz, 6KV Surge Protection, 720mA, 100-277V 0.4A, Power Factor 99%.

THD

16.8% at 277V
