• Single-face panel with red letters
  • Modern edge-lit design
  • Compliant with California Title 20
View Technical Specs
Dimensions
Link to Dimension Drawing

Weight: 3.0 lbs

Technical Specifications
Performance
Product Type
Edge-lit Exit Sign
Description

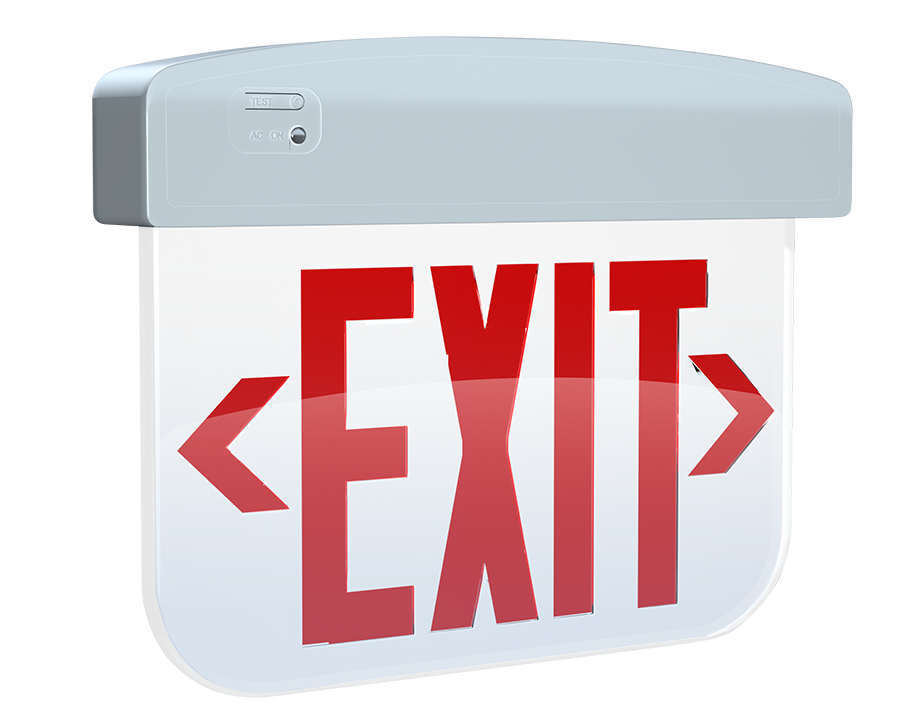

Ultra-economy edge-lit exit sign with a single face and red letters.
Input Wattage
3.3W @120V and 277V
Electrical
Power Factor
≥0.9
Input Voltage
Dual 120/277 Voltage
Operating Frequency (Hz)
60Hz
Input Current @ 120V (mA)
30mA
Input Current @ 277V (mA)
14mA
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Battery Backup
No, AC only
Battery Operating Temperature
32°C to 122°C (0°F to 50°F)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Self Diagnostics
No, manual test only
Remote Test Switch
No
Installation
Mounting Method
Back/Top/End
Mounting Type
Wall/Ceiling Mount
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Thermoplastic
Panel Material
Acrylic
Panel Color
Clear
Letter Color
Red
Housing Color
White
Number of Faces
Single Face
Arrow Direction
No Arrow
Sign Format
Edge-lit
Remote Capacity
No
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
PLELRXTEU1RCW
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
