EXITEDGE-GMPW/E

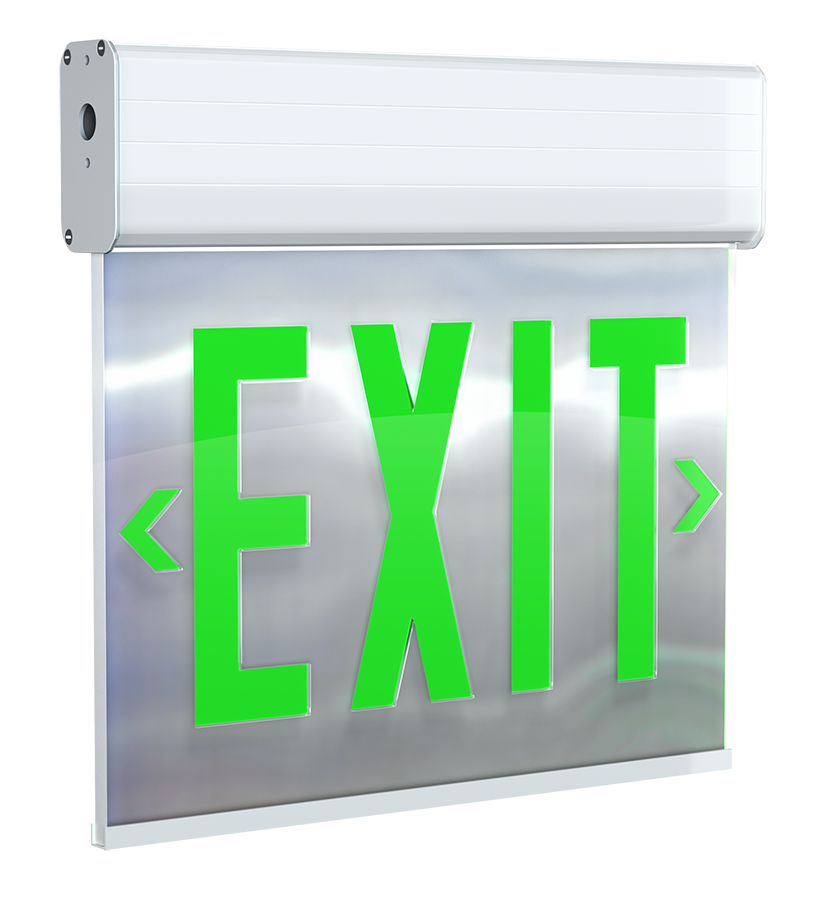

Double-face edge-lit exit sign; mirrored or white acrylic panel by model (see Panel Color in specs)

Aluminum housing in white or brushed aluminum finish

Red or green letter models

Universal surface mounting: wall, ceiling or end

90-minute battery backup models available

View Technical Specs

View Price & Availability

Dimensions

Weight: 4.4 lbs

Technical Specifications

Performance

Product Type

Aluminum Edge-Lit Exit Sign

Product Series

EXITEDGE Edge-Lit Exit Sign

Description

Attractive yet easy-to-install universal edge-lit exit sign for high end applications

Input Power (W)

3.5W

Maximum Output Wattage (W)

0.72W

Construction

Housing Material

Aluminum housing with high grade acrylic panel

Housing Finish

White Housing

Lens Panel

Mirror backing acrylic exit panel

Lettering

Green Lettering - Letters 6" height with 3/4" stroke

Face Configuration

Double face

Arrow Configuration

Field-installable, removable chevron directional indicators for all configurations

Illumination Source

Long-life LEDs provide diffuse illumination of exit face

Electrical

Power Factor

0.8

Input Voltage (V)

120/277 Dual Voltage

Operating Frequency

50/60Hz

Input Current @ 120V (A)

0.027A

Input Current @ 277V (A)

0.013A

Operating Temperature

32°F to 104°F (0°C to 40°C)

Emergency Characteristics

Battery Backup

Yes

Emergency Illumination

90 minutes

Battery

Nickel Cadmium

Battery Voltage

Recharge Time

Maximum 24 hours for full recharge time

Battery Operating Temperature

32°F to 122°F (0°C to 50°C)

Testing Method

Integrated Test Switch & Charge Indicator

Installation

Mounting

Innovative mounting installs in minutes with aluminum mounting plate+C39487C39468:C3C39468:C39492

Application

Supports ceiling, side, and wall mounting.

Compliance

Listings

UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards

Environment

Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.

IP Rating

IP20

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
