EXITEDGE-1WPWLACH
EXITEDGE-1WPWLACH

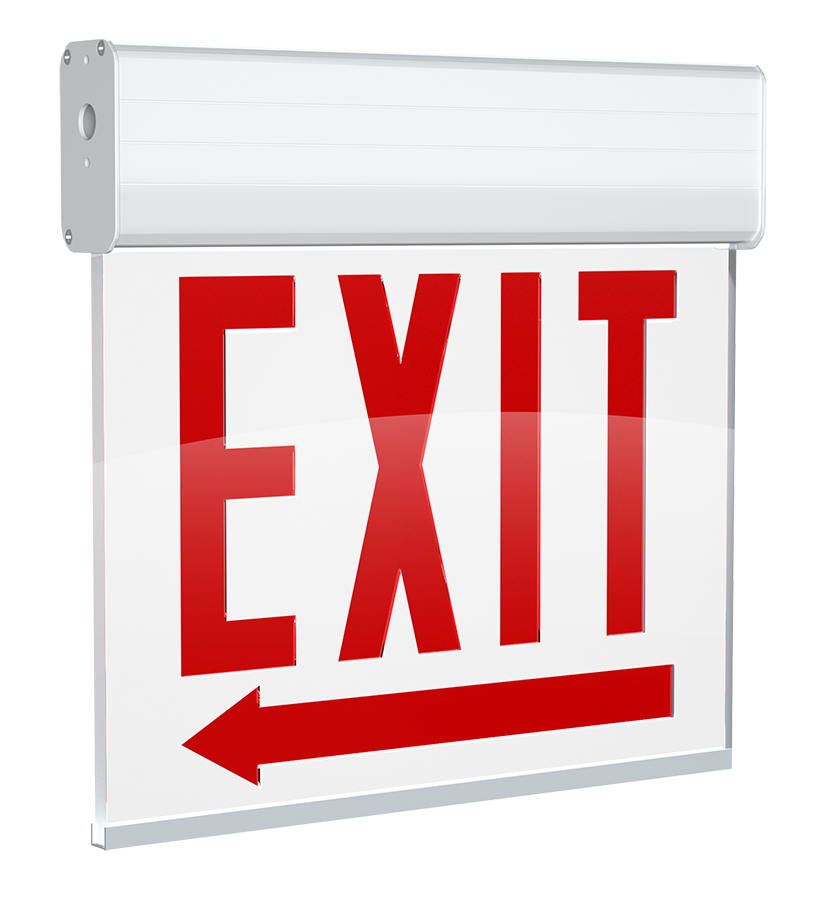

- Chicago-approved single-face edge-lit exit sign
- White acrylic panel with red letters
- Aluminum housing in white or brushed aluminum finish
- Surface or recessed mounting models
- AC-only and 90-minute battery backup models available
Dimensions
Weight: 5.2 lbs
Technical Specifications
Performance
Product Type
Emergency Unit Chicago Approved
Description
Chicago Approved Steel Emergency Unit
Input Power (W)
8.4W @120V; 9.4W @277V
Lumens
335lm
Lumens (per fixture)
670lm
Electrical
Power Factor
0.9
Input Voltage
Dual 120/277 Voltage
Frequencies
60 Hz
Input Current @ 120V (mA)
80mA
Input Current @ 277V (mA)
40mA
Maximum Output Current (Amps)
0.90A
Maximum Output Wattage
5.4W
Dual Voltage Circuit Operation
No
Operating Temperature
68°F to 122°F (20°C to 50°C)
Battery Type
Sealed Lead Acid
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
1 year before the initial charge.
Self Diagnostics
No, manual test only
Remote Test Switch
No
Emergency Characteristics
Emergency Illumination
90 minutes
Battery Voltage
6V
Recharge Time Required
24-hours
Battery Operating Temperature
20°F to 50°F (68°C to 122°C)
Installation
Mounting Method
Back
Mounting Type
Wall
Maximum Mounting Height (ft.)
36 ft
Emergency Egress Coverage(ft) Mounting at height of 7.5ft
60 ft x 3 ft mounted @ 7.5 ft
Spacing Criteria for Emergency Egress
50 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Steel Sheet
Housing Color
White
Remote Capacity
Yes
No. of Heads
2-Lamp Heads
Head Shape
Round
Remote Head Power (W)
5W
Compliance
Listings
UL924 Listed
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
CAEMW
T20 Compliant
Not Title 20 Compliant
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
City Compliance
Chicago Approved
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
EREMOTE-1
Single remote head
EREMOTE-1H
Single remote head high-output
EREMOTE
Double remote head
EREMOTE-H
Double remote head high-output
EREMOTE-1HB
Single remote head high-output, black
EREMOTE-B
Single remote head, black
EREMOTEOUT-1
Single remote head, outdoor
EREMOTEOUT
Double remote head, outdoor
EREMOTEOUT-1H
Single remote head high-output, outdoor
EREMOTEOUT-H
Double remote head high-output, outdoor
EREMOTEOUT-1HB
Single remote head high-output, black, outdoor
EREMOTEOUT-HB
Double remote head high-output, outdoor
Single remote head
EREMOTE-1H
Single remote head high-output
EREMOTE
Double remote head
EREMOTE-H
Double remote head high-output
EREMOTE-1HB
Single remote head high-output, black
EREMOTE-B
Single remote head, black
EREMOTEOUT-1
Single remote head, outdoor
EREMOTEOUT
Double remote head, outdoor
EREMOTEOUT-1H
Single remote head high-output, outdoor
EREMOTEOUT-H
Double remote head high-output, outdoor
EREMOTEOUT-1HB
Single remote head high-output, black, outdoor
EREMOTEOUT-HB
Double remote head high-output, outdoor
2-Year Limited Warranty
The RAB 2-year, limited warranty covers light output, driver perfomance, paint finish and labor. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.
Battery is prorated.
