EXITEDGE-1WPDACH/E
EXITEDGE-1WPDACH/E

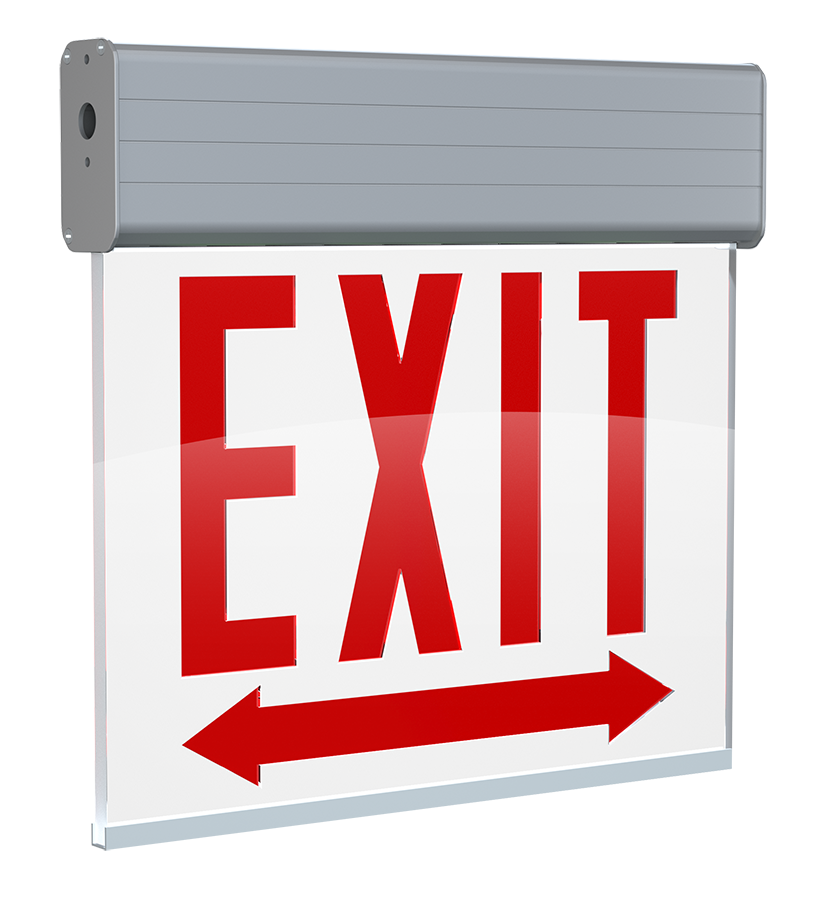

- Chicago-approved single-face edge-lit exit sign
- White acrylic panel with red letters
- Aluminum housing in white or brushed aluminum finish
- Surface or recessed mounting models
- AC-only and 90-minute battery backup models available
Dimensions
Weight: 4.0 lbs
Technical Specifications
Performance
Product Type
Chicago-Approved Edge-Lit Exit Sign
Description
Chicago-approved edge-lit exit sign with a double face and red letters.
Input Wattage
4.3W @120V; 4.7W @277V
Electrical
Power Factor
≥0.9
Input Voltage
Dual 120/277 Voltage
Operating Frequency (Hz)
60Hz
Input Current @ 120V (mA)
40mA
Input Current @ 277V (mA)
20mA
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Self Diagnostics
No, manual test only
Remote Test Switch
No
Emergency Characteristics
Battery Backup
No, AC only
Battery Operating Temperature
0°F to 50°F (32°C to 122°C)
Installation
Mounting Method
Back/Top/End
Mounting Type
Wall/Ceiling Mount
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Aluminum
Panel Material
Acrylic
Panel Color
White
Letter Color
Red
Housing Color
Aluminum
Number of Faces
Double Face
Arrow Direction
Double Arrow
Arrow Material
Screen Print
Sign Format
Edge-lit
Remote Capacity
No
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
CAELXTEU2RWA-DA
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
City Compliance
Chicago Approved
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
