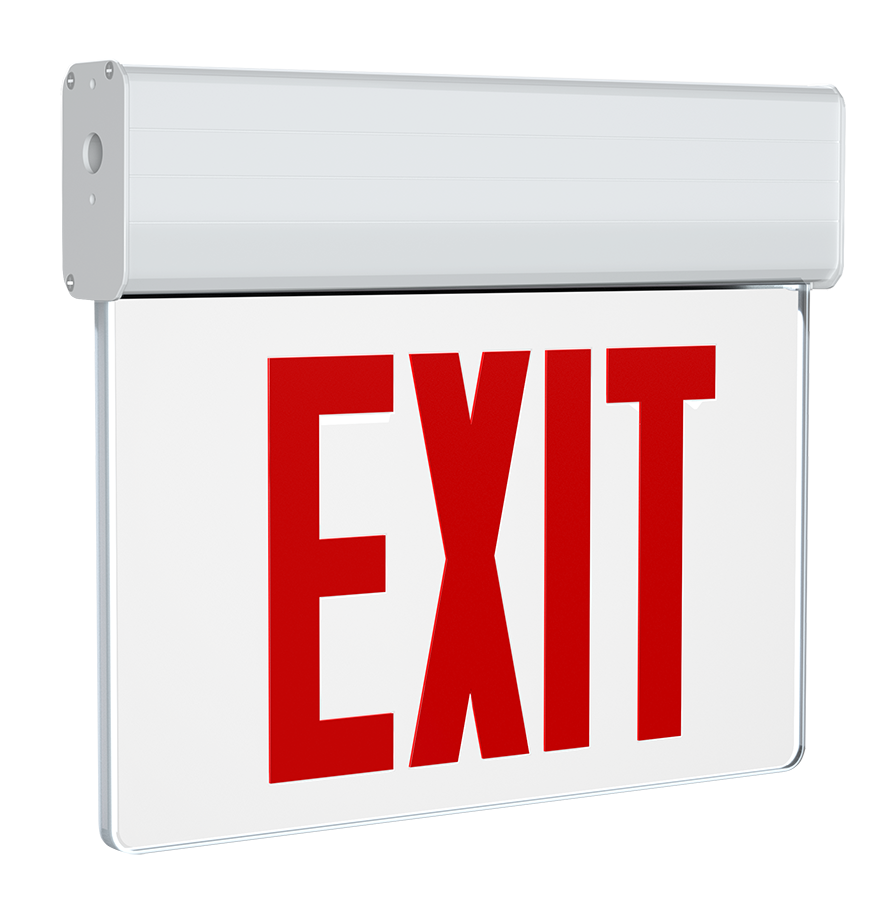

EXITEDGE-1W/E
EXITEDGE-1W/E
- Aluminum housing in white or brushed finish. Single Face or double face available with clear, white or mirror acrlyic panesl
- Can be universally surface mounted, ceiling, wall, or end
- Red & Green letter models available
- 90 minutes of battery backup
- Self diagnostic models available

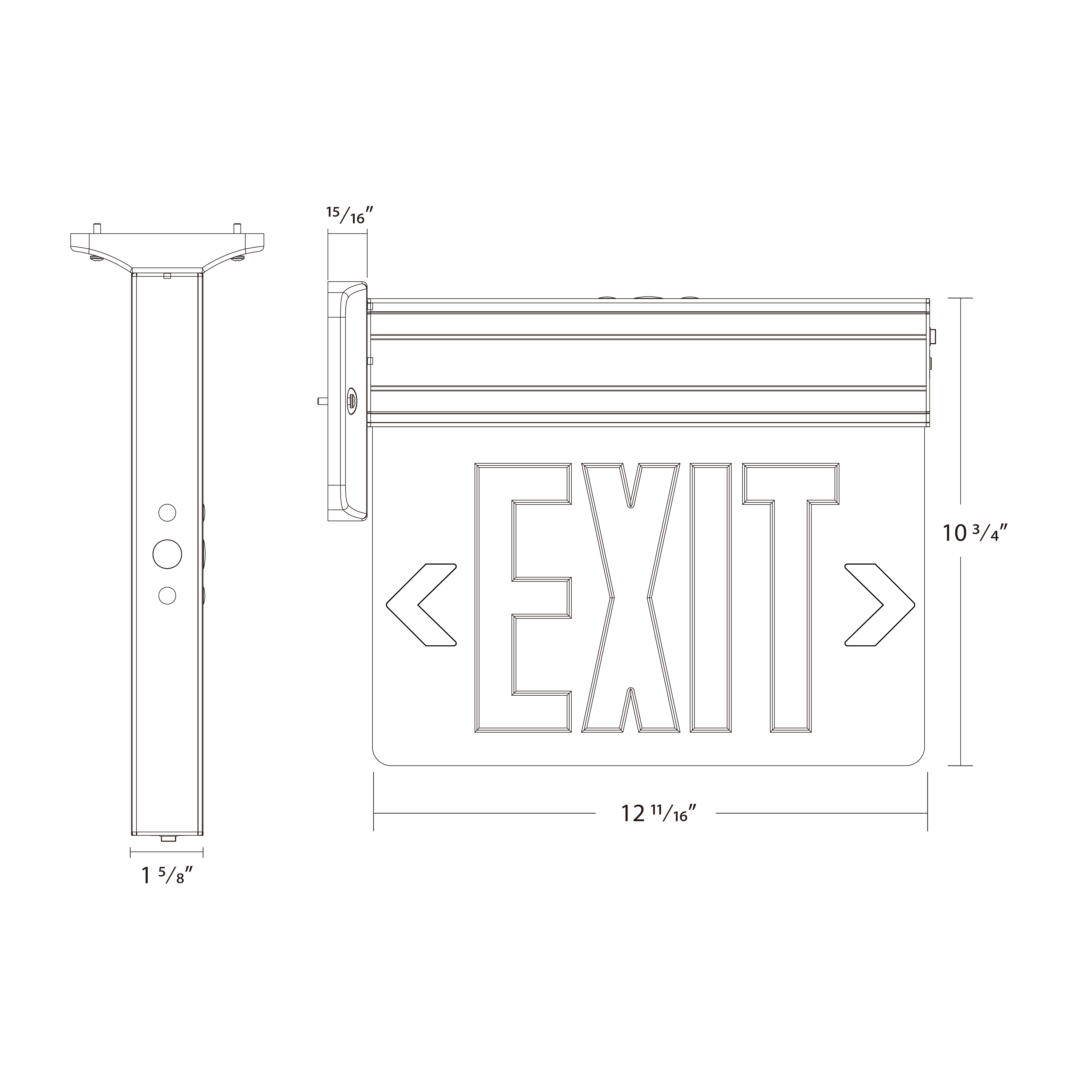

Dimensions
Weight: 3.4 lbs
Technical Specifications
Performance
Product Type
Aluminum Edge-Lit Exit Sign
Product Series
EXITEDGE
Edge-Lit Exit Sign
Description
Attractive yet easy-to-install universal edge-lit exit sign for high end applications
Input Power (W)
3.5W
Maximum Output Wattage (W)
0.72W
Construction
Housing Material
Aluminum housing with high grade acrylic panel
Housing Finish
White Housing
Lens Panel
Clear acrylic exit panel
Lettering
Red Lettering - Letters 6" height with 3/4" stroke
Face Configuration
Single face
Arrow Configuration
Field-installable, removable chevron directional indicators for all configurations
Illumination Source
Long-life LEDs provide diffuse illumination of exit face
Electrical
Power Factor
0.8
Input Voltage (V)
120/277 Dual Voltage
Operating Frequency
50/60Hz
Input Current @ 120V (A)
0.027A
Input Current @ 277V (A)
0.013A
Operating Temperature
32°F to 104°F (0°C to 40°C)
Emergency Characteristics
Battery Backup
Yes
Emergency Illumination
90 minutes
Battery
Nickel Cadmium
Battery Voltage
Battery Voltage
Recharge Time
Maximum 24 hours for full recharge time
Battery Operating Temperature
32°F to 122°F (0°C to 50°C)
Testing Method
Integrated Test Switch & Charge Indicator
Installation
Mounting
Innovative mounting installs in minutes with aluminum mounting plate+C39487C39468:C3C39468:C39492
Application
Supports ceiling, side, and wall mounting.
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.
IP Rating
IP20
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
