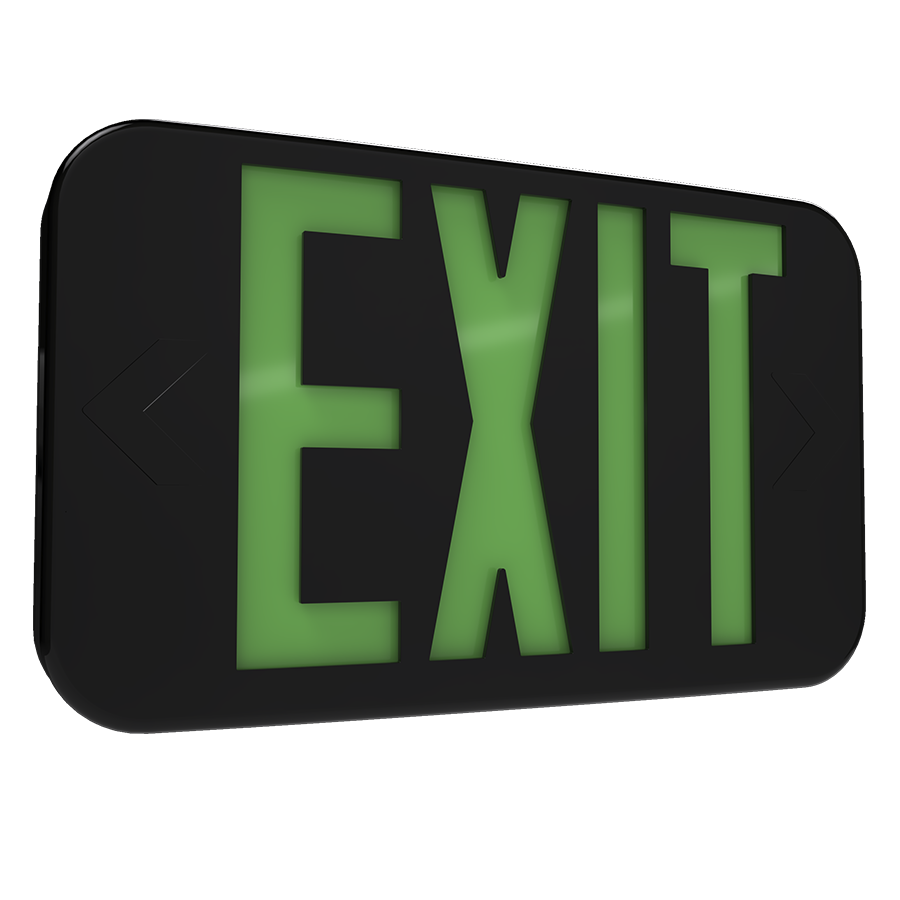

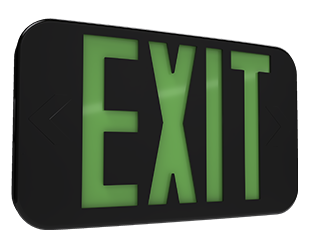

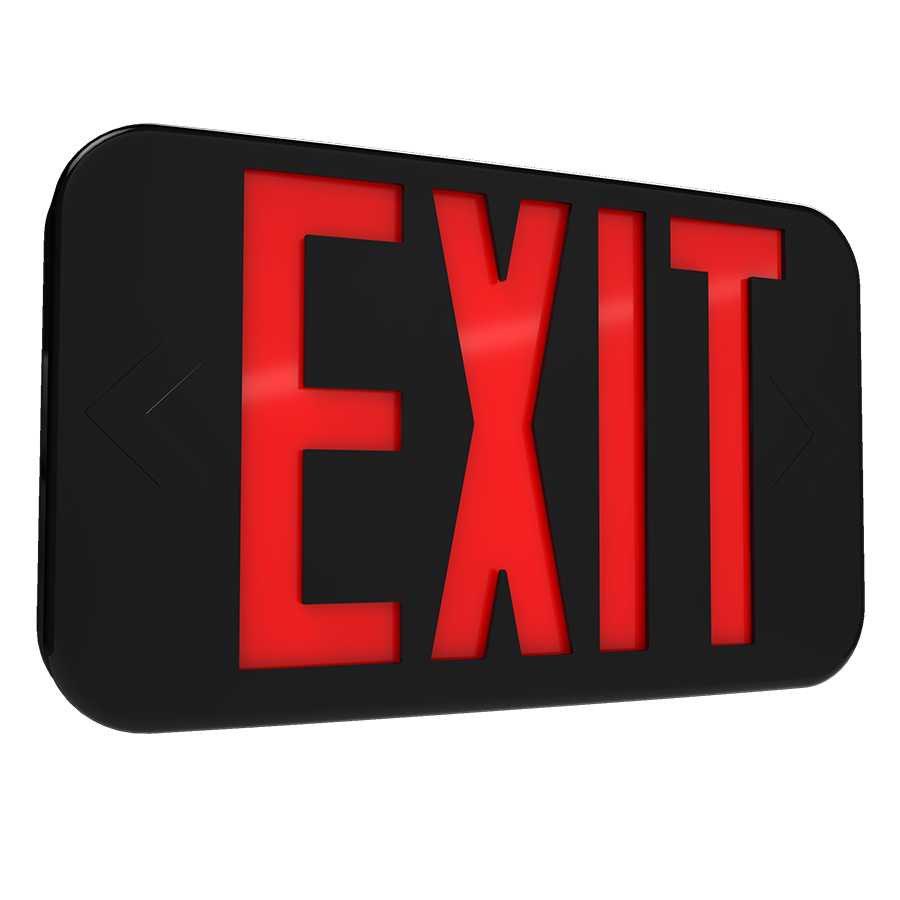

EXIT34-RG/E-B
EXIT34-RG/E-B
- Universal faces with color letters
- Durable thermoplastic design
- Complies with California Title 20 requirements
Dimensions
Weight: 1.7 lbs
Technical Specifications
Performance
Product Type
Exit Sign
Description
Ultra-economy exit signs available field installed red or green letters and battery backup.
Input Power
1.0W @120V and 277V
Electrical
Power Factor
0.09@120V; 0.04@277V
Input Voltage
Dual 120/277 Voltage
Operating Frequency (Hz)
60Hz
Input Current @ 120V (mA)
90mA
Input Current @ 277V (mA)
90mA
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Emergency Illumination
90 minutes
Battery Backup
Yes
Battery Type
Nickel Cadmium
Battery Voltage
1.2V
Recharge Time Required
24-hours
Battery Operating Temperature
32°C to 122°C (0°F to 50°F)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
3 years before the initial charge. 5 years after initial charge.
Self Diagnostics
No, manual test only
Remote Test Switch
No
Installation
Mounting Method
Back/Top/End
Mounting Type
Wall/Ceiling Mount
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Thermoplastic
Panel Material
Thermoplastic
Panel Color
White
Letter Color
Red/Green
Housing Color
Black
Number of Faces
Universal Single/Double Face
Arrow Direction
No Arrow
Sign Format
Stencil
Remote Capacity
No
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
EZRXTEU2RBEM-V2
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.
Battery is prorated.
