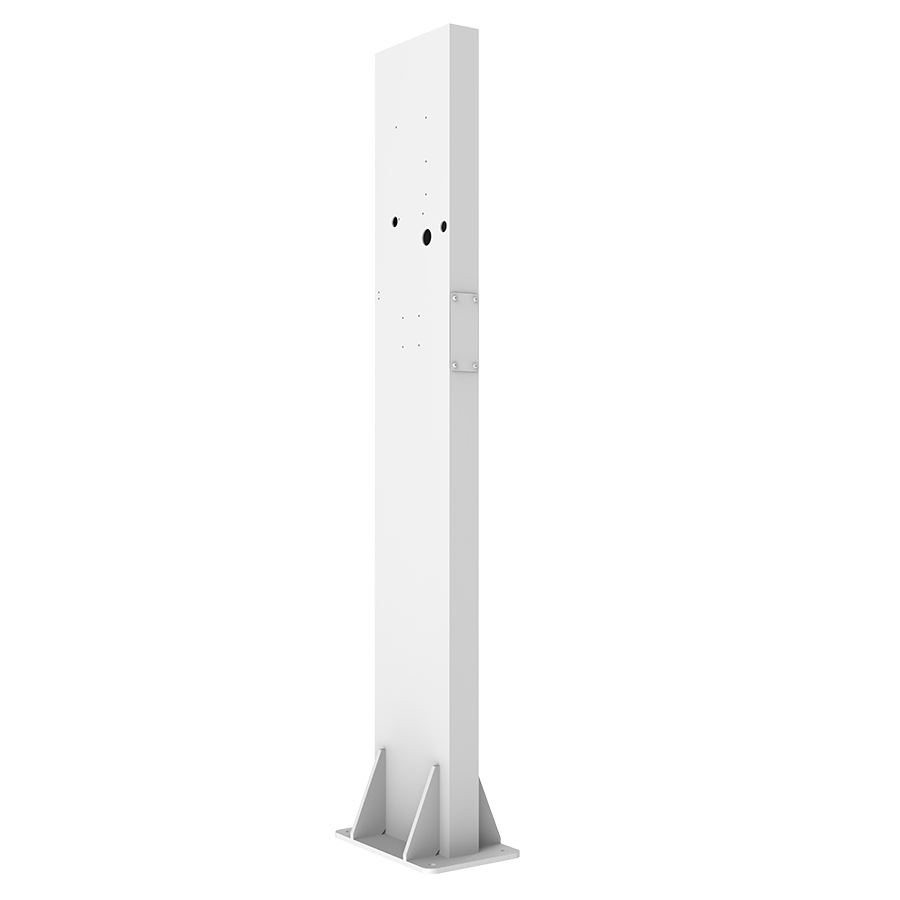

EVPS
- Built stronger to withstand more impact, harsher weather and last longer
- 3mm galvanized steel
- Anti-Corrosion
- Anti-Rust
- Powder Coated White Finish
Dimensions
Weight: 64.0 lbs
Technical Specifications
Performance
Product Type
EV Charger Accessories
Description
Single Sided Pedestal Base
Construction
Dimensions (L x W x H inch)
12.99 x 8.27 x 59.06
Finish
Powder painting
Material
Steel
Color
White
Tamper Resistant
Yes
Wall Thickness (inch)
0.125
Installation
Mounting
Concrete pad
Hardwired
3/4" conduit
Bolt Circle
M12
Base Dimensions (L x W x H inch)
15.7 x 15.7 x 19.7
Anchor Bolts
M12 x 1.75P x 100
Pre-Shipped Anchor Bolts
Yes
Anchor Bolt Template
Refer to instruction
Installation Hardware
Yes
Compliance
RoHS
Mercury and UV free. RoHS-compliant components.
Other
Compatible Accessories
EVC48 48A AC Charger, EVC80 80A AC Charger
3-Year Limited Warranty
RAB warrants that our products will be free from defects in materials for a period of three (3) years from the date of delivery to the end user. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
