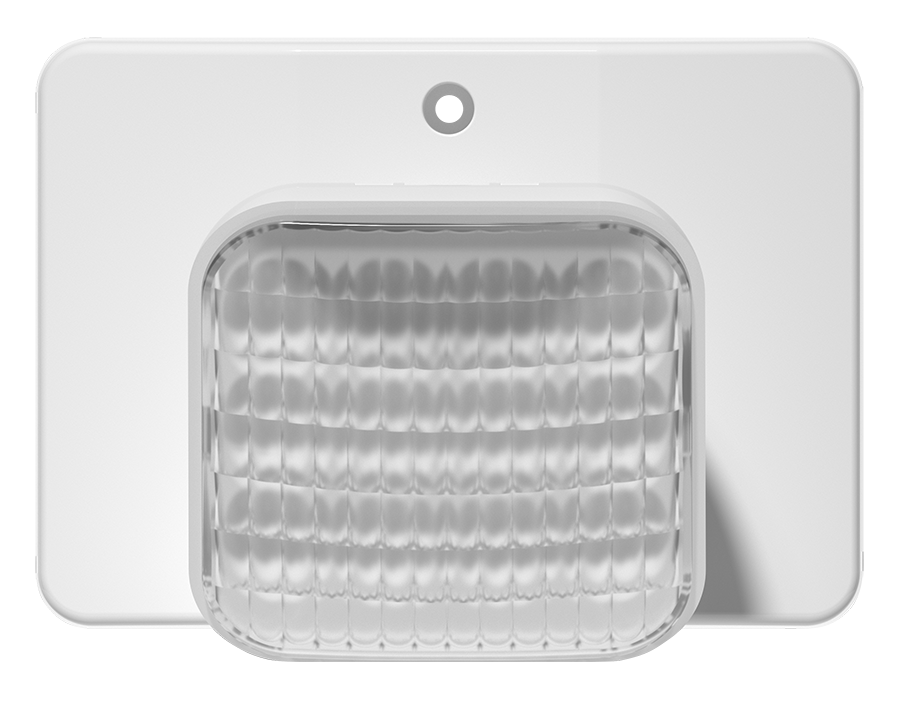

EREMOTE-1S
- Durable thermoplastic design
- Remote head capable, see Remote Head Compatibility List
Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Emergency Unit, Remote Head
Description
Indoor Thermoplastic Remote Single Head
Lumens
45lm
Electrical
Input Voltage
Multi-Volt (3.6V,9.6V,6V,12V)
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Self Diagnostics
Yes
Remote Test Switch
No
Installation
Mounting Method
Back
Mounting Type
Wall Mount
Maximum Mounting Height (ft.)
11 ft
Emergency Egress Coverage(ft) Mounting at height of 7.5ft
12 ft x 3 ft mounted @ 7.5 ft
Spacing Criteria for Emergency Egress
8.5 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
Cold Weather Rated
No
Application
For Use With Fixtures With Self-Diagnostic Option
Construction
Shape
Rectangle
Housing Material
Thermoplastic
Housing Color
White
No. of Heads
1-Lamp Head
Head Shape
Square
Remote Head Power (W)
1W
Compliance
Listings
UL924 Listed
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
RHLED1SDT-MV
T20 Compliant
Not applicable
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
See Remote Head Compatibility List
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
