EMR-R
- Adjustable Round LED lamp heads provide optimal center-to-center spacing. Suitable for Wall or Ceiling mounting
- Injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white housing finish
- 90 minutes of battery backup
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,Local and State Codes. Compliant with California Title 23

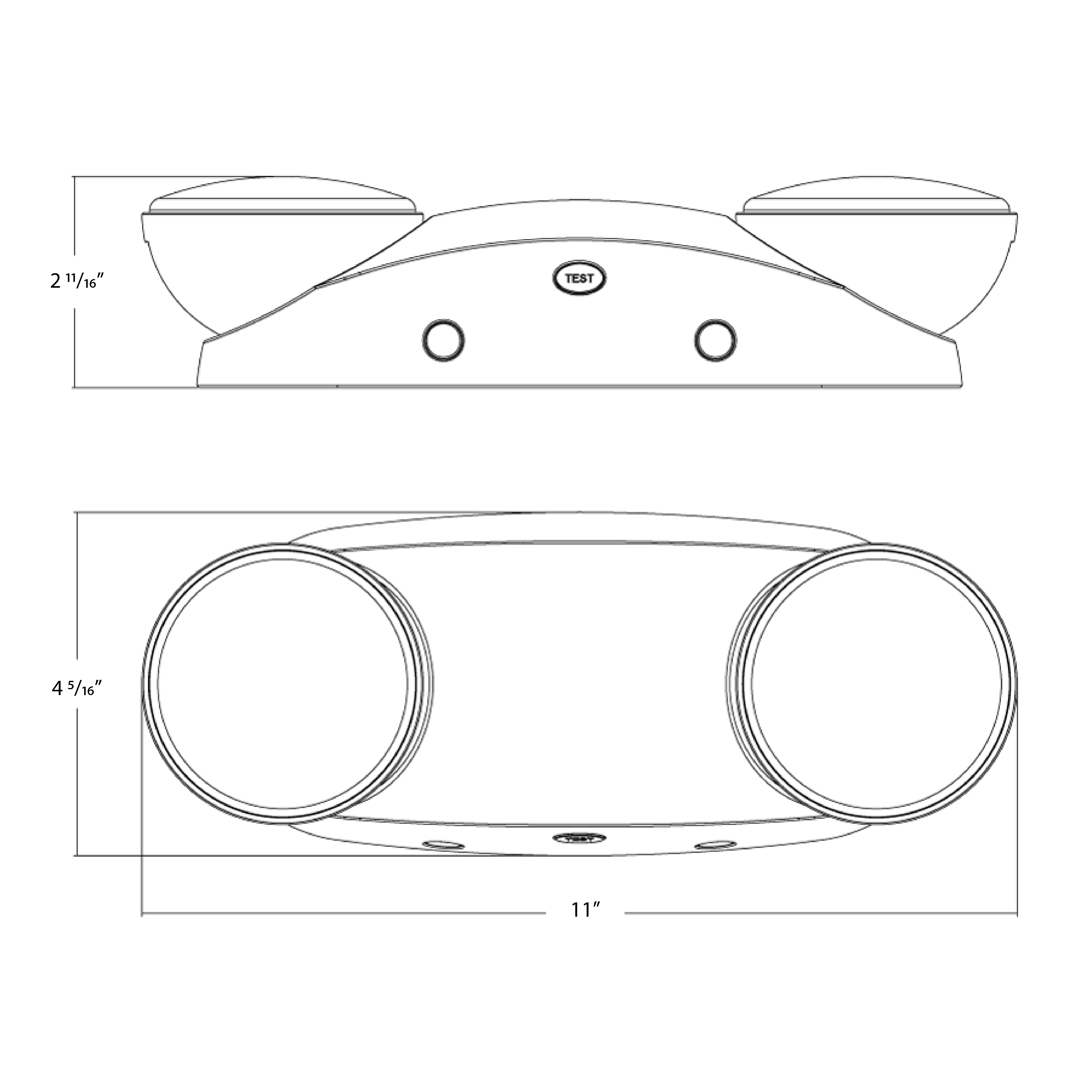

Dimensions
Weight: 1.1 lbs
Technical Specifications
Performance
Product Type
Emergency Unit
Description
Emergency Thermoplastic Unit with Round Heads and Remote Capable
Input Power
1.2W
Lumens
160lm
Electrical
Power Factor
0.4
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
20mA
Input Current @ 277V (mA)
10mA
Maximum Output Current (Amps)
500mA
Maximum Output Wattage
2W
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 104°F (0°C to 40°C)
Emergency Illumination
90 minutes
Battery Type
Nickel Cadmium
Battery Voltage
3.6V
Recharge Time Required
24-hours
Battery Operating Temperature
0°F to 40°F (32°C to 104°C)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
3 years before the initial charge. 5 years after initial charge.
Self Diagnostics
No, manual test only
Remote Test Switch
No
Emergency Backup
Battery Backup
Yes
Installation
Mounting Method
Back
Mounting Type
Wall
Maximum Mounting Height (ft.)
8 ft
Spacing Criteria for Emergency Egress
14 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Thermoplastic
Housing Color
White
Remote Capacity
Yes
No. of Heads
2-Lamp Heads
Head Shape
Round
Remote Head Power (W)
2W
Remote Head Lumens (lm)
160lm
Remote Heads Replaceable
No
Compliance
Listings
UL924 Listed
Environment
Suitable for use in dry and damp environments
IP Rating
IP20
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
