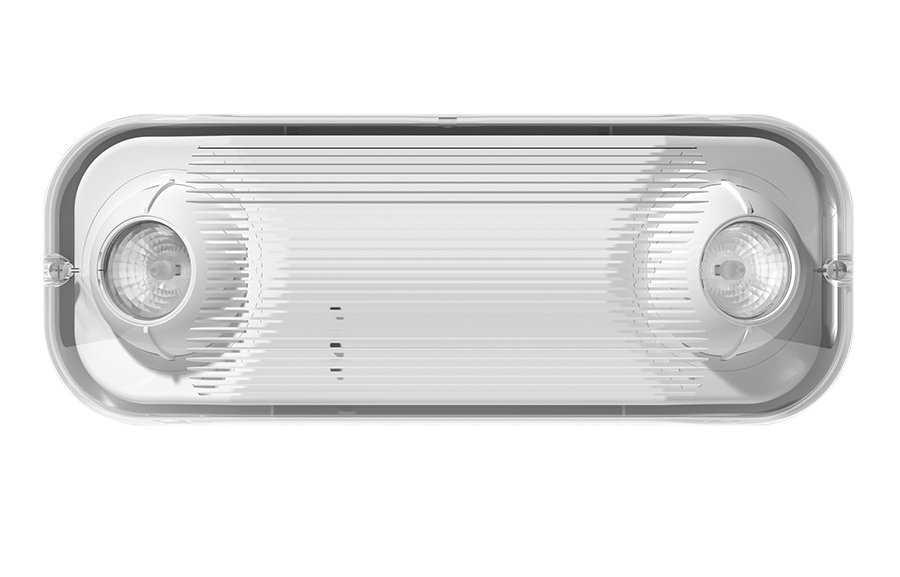

EMOUT-HCECCM
- Durable thermoplastic design
- Remote head, see Remote Head Compatibility List
- Includes MR16 lamps
- Outdoor rated for dry, damp, wet, and cold environments
Dimensions
Weight: 5.6 lbs
Technical Specifications
Performance
Product Type
Emergency Unit
Description
MR-16 Wet Location Semi-Recessed Thermoplastic Emergency Unit
Input Power (W)
6W
Lumens
349lm
Electrical
Power Factor
0.9
Input Voltage
Dual 120/277 Voltage
Frequencies
60 Hz
Input Current @ 120V (mA)
50mA
Input Current @ 277V (mA)
25mA
Dual Voltage Circuit Operation
No
Operating Temperature
-4°F to 122°F (-20°C to 50°C)
Emergency Illumination
90 minutes
Battery Type
Sealed Lead Acid
Battery Voltage
6V
Recharge Time Required
24-hours
Battery Operating Temperature
-25°F to 50°F (-13°C to 122°C)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
1 year before the initial charge.
Self Diagnostics
No, manual test only
Remote Test Switch
No
Installation
Mounting Method
Back
Mounting Type
Wall
Maximum Mounting Height (ft.)
34 ft
Emergency Egress Coverage(ft) Mounting at height of 7.5ft
48 ft x 3 ft mounted @ 7.5 ft
Spacing Criteria for Emergency Egress
46 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
Cold Weather Rated
Yes
Construction
Shape
Rectangle
Housing Material
Thermoplastic
Housing Color
Gray
Remote Capacity
No
Head Shape
Round
Compliance
Listings
UL924 Listed
Environment
Suitable for indoor or outdoor use in dry, damp, and wet environments
IP Rating
Indoor/Outdoor
Certification Model Number
RMR-16-WP-CW-PLED-CEC
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
2-Year Limited Warranty
The RAB 2-year, limited warranty covers light output, driver perfomance, paint finish and labor. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.
Battery is prorated.
