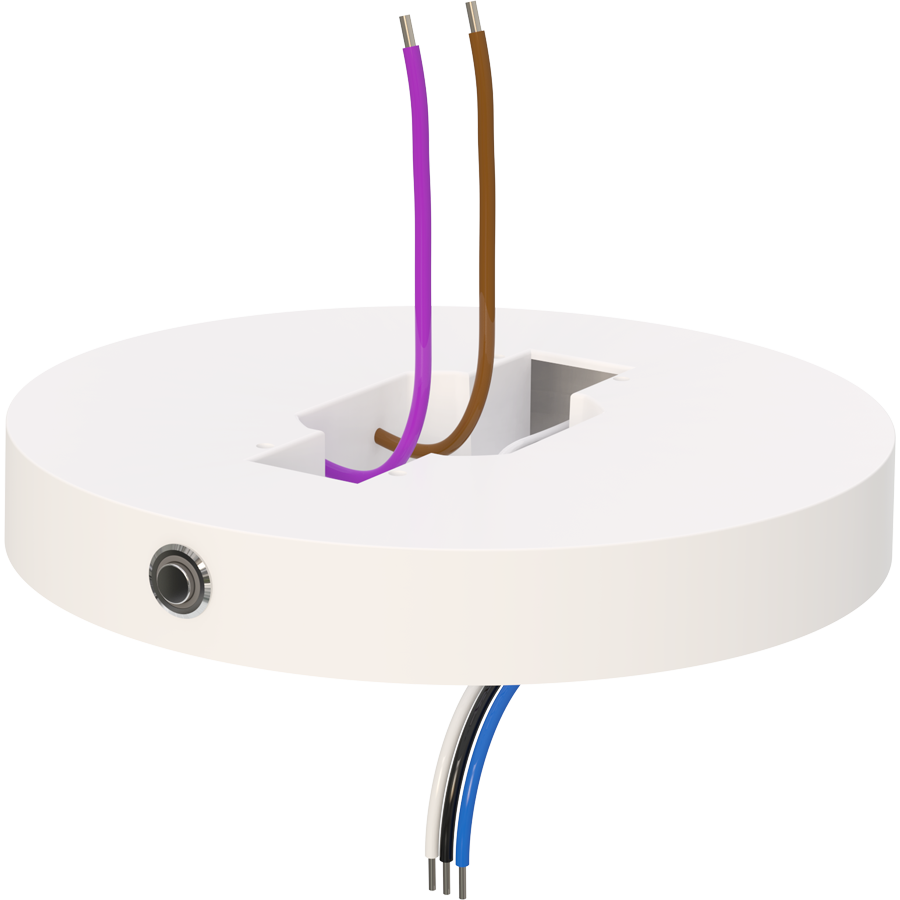

EMB-R-7
- 90-minute emergency runtime on battery power
- Compatible with SUMO Slim round surface mounts
- Automatic switchover during power outage
- LED indicator shows charge and battery status
- Monthly and annual self-test capable
- Unswitched AC input, 100-277V
- Dry and damp location rated
Performance
| Watts | |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan |
| Type | |
| 120V | 0.10A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |

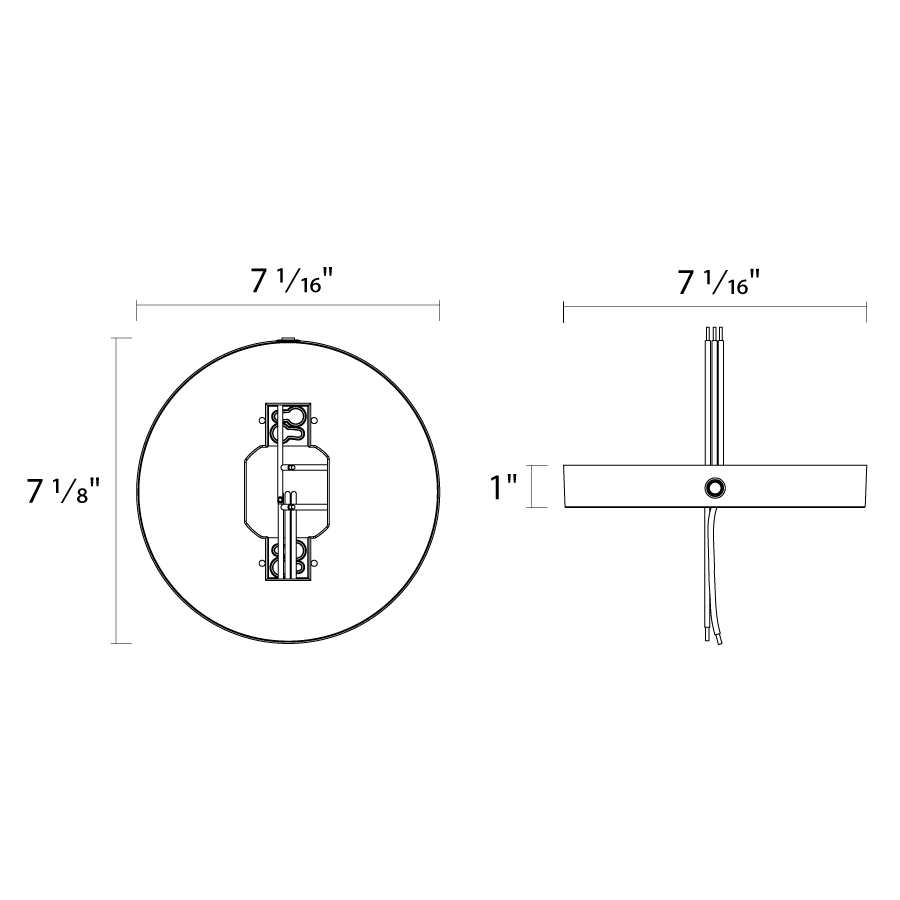

Dimensions
Weight: 0.8 lbs
Technical Specifications
Performance
Product Type
Battery Backup for SUMO
Description
Mounting kits, battery backup and color trims for field adjustable surface mounts.
Electrical
Driver
Continuous Wave @ 120V, 50/60 Hz: 0.10 A
Input Voltage
120V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
0.10A
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Size
7"
Shape
Round
Finish
Matte White, fade & Scratch resistant
Enclosure Material
Plastic
Emergency Backup
Emergency Operation
90 minutes
Emergency Characteristics
Battery Recharge Time
24 hours
Installation
Mounting
Surface mount
Compliance
Environment
Suitable for use indoors in dry and damp environments.
Certification Model Number
DRI011(EMB-R-7)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
SUMO-R-7[K]
7" Slim SUMO round surface mount
7" Slim SUMO round surface mount
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
