Dimensions
Weight: 9.1 lbs
Technical Specifications
Performance
Product Type
Emergency Unit New York City Compliant
Description

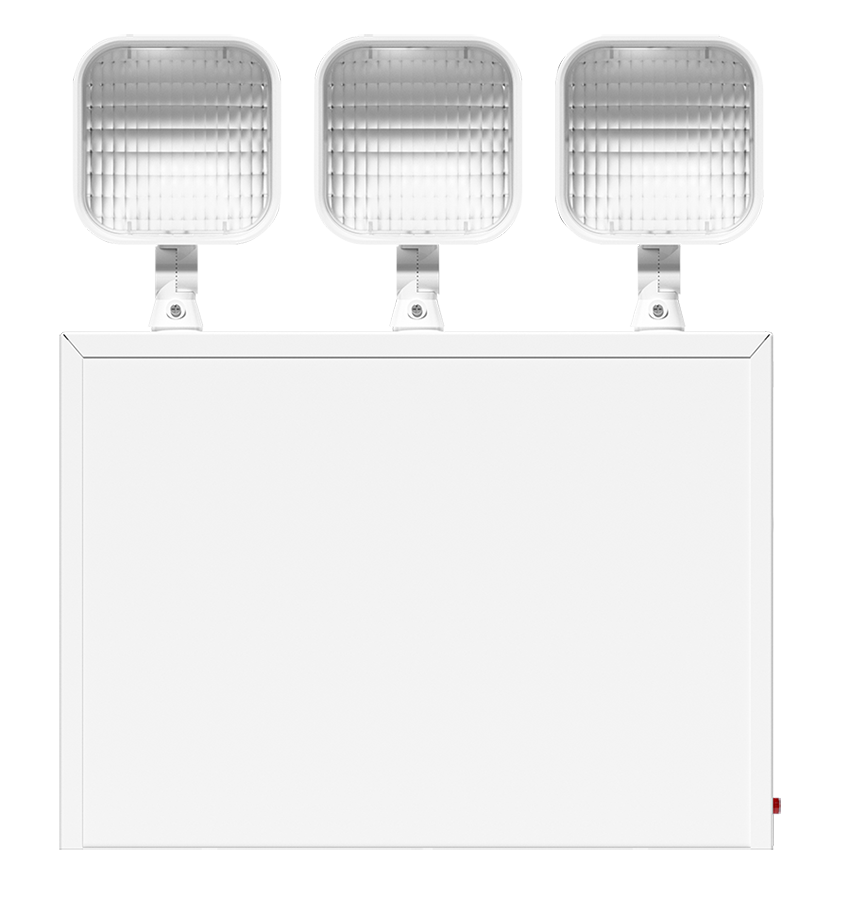

New York City Approved Steel Emergency Unit
Input Power (W)
5W
Lumens
65lm
Lumens (per fixture)
195lm
Electrical
Power Factor
0.8@120V; 0.6@277V
Input Voltage
Dual 120/277 Voltage
Frequencies
50/60 Hz
Input Current @ 120V (mA)
50mA
Input Current @ 277V (mA)
30mA
Maximum Output Current (Amps)
0.78A
Maximum Output Wattage
7.5W
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Emergency Illumination
90 minutes
Battery Type
Nickel Cadmium
Battery Voltage
9.6V
Recharge Time Required
24-hours
Battery Operating Temperature
0°F to 50°F (32°C to 122°C)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
3 years before the initial charge. 5 years after initial charge.
Self Diagnostics
No, manual test only
Remote Test Switch
No
Installation
Mounting Method
Back/End
Mounting Type
Wall
Maximum Mounting Height (ft.)
10 ft
Emergency Egress Coverage(ft) Mounting at height of 7.5ft
12 ft x 3 ft mounted @ 7.5 ft
Spacing Criteria for Emergency Egress
24 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Steel Sheet
Housing Color
White
Remote Capacity
Yes
No. of Heads
3-Lamp Heads
Head Shape
Square
Remote Head Power (W)
1W
Compliance
Listings
UL924 Listed
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
PRLEDNYDXR-83
T20 Compliant
Not Title 20 Compliant
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
City Compliance
New York City Approved
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
EREMOTE-1
Single remote head
EREMOTE-1H
Single remote head high-output
EREMOTE
Double remote head
EREMOTE-H
Double remote head high-output
EREMOTE-1HB
Single remote head high-output, black
EREMOTE-B
Single remote head, black
EREMOTEOUT-1
Single remote head, outdoor
EREMOTEOUT
Double remote head, outdoor
EREMOTEOUT-1H
Single remote head high-output, outdoor
EREMOTEOUT-H
Double remote head high-output, outdoor
EREMOTEOUT-1HB
Single remote head high-output, black, outdoor
EREMOTEOUT-HB
Double remote head high-output, outdoor
Single remote head
EREMOTE-1H
Single remote head high-output
EREMOTE
Double remote head
EREMOTE-H
Double remote head high-output
EREMOTE-1HB
Single remote head high-output, black
EREMOTE-B
Single remote head, black
EREMOTEOUT-1
Single remote head, outdoor
EREMOTEOUT
Double remote head, outdoor
EREMOTEOUT-1H
Single remote head high-output, outdoor
EREMOTEOUT-H
Double remote head high-output, outdoor
EREMOTEOUT-1HB
Single remote head high-output, black, outdoor
EREMOTEOUT-HB
Double remote head high-output, outdoor
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.
Battery is prorated.
