ECOMBO-1RACH
ECOMBO-1RACH

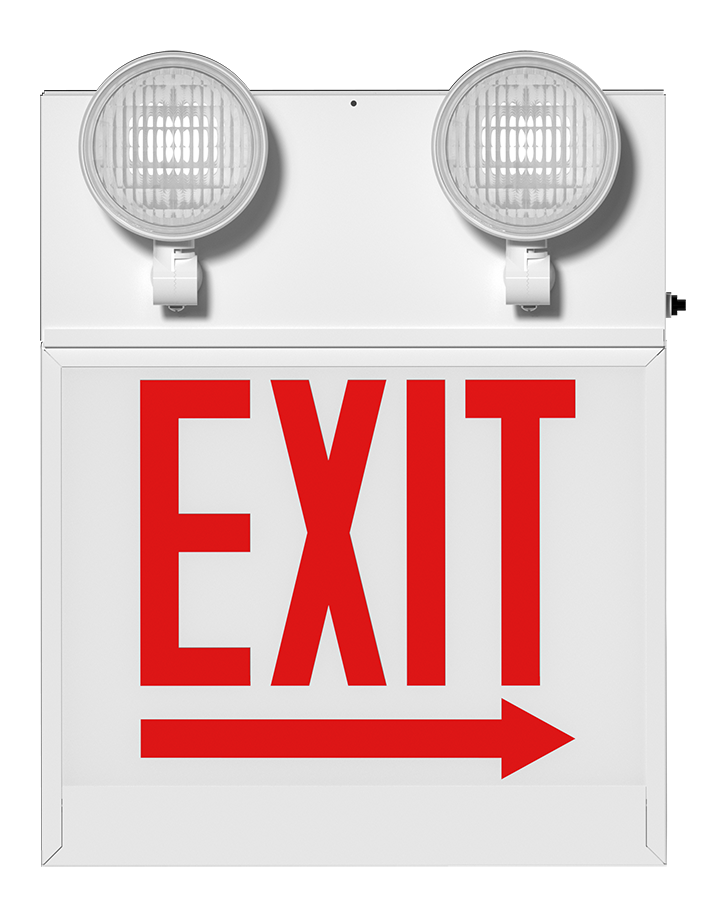

- Chicago-approved single-face exit sign + emergency light combo
- White steel housing, white panel with red letters
- No-arrow, left, right and double-arrow models
- 120-minute Ni-Cd battery backup
- Wall or ceiling mount: back, top or end
Dimensions
Weight: 8.1 lbs
Technical Specifications
Performance
Product Type
Exit Combo Chicago Approved
Description
Chicago-approved exit sign combo with 90-minute emergency battery backup unit.
Input Power (W)
12W @120V; 13W @277V
Lumens
349lm
Lumens (per fixture)
698lm
Electrical
Power Factor
0.9
Input Voltage
Dual 120/277 Voltage
Operating Frequency
60Hz
Input Current @ 120V (mA)
120mA
Input Current @ 277V (mA)
60mA
Dual Voltage Circuit Operation
No
Operating Temperature
68°F to 122°F (20°C to 50°C)
Battery Type
Nickel Cadmium
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
3 years before the initial charge. 5 years after initial charge.
Self Diagnostics
No, manual test only
Remote Test Switch
No
Emergency Characteristics
Emergency Illumination
120 minutes
Battery Backup
Yes
Battery Voltage
6V
Recharge Time Required
24-hours
Battery Operating Temperature
20°F to 50°F (68°C to 122°C)
Installation
Mounting Method
Back/Top/End
Mounting Type
Wall/Ceiling Mount
Maximum Mounting Height (ft.)
20.5 ft
Spacing Criteria for Emergency Egress
46 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Sheet Metal
Housing Color
White
Panel Material
Glass
Panel Color
White
Letter Color
Red
Number of Faces
Universal Single/Double Face
Arrow Direction
No Arrow
Sign Format
Panel
Remote Capacity
No
No. of Heads
2-Lamp Heads
Head Shape
Round
Remote Head Power (W)
5W
Remote Head Lumens (lm)
349lm
Remote head Lumens (per fixture)
698lm
Remote Heads Replaceable
Yes
Compliance
Listings
UL924 Listed
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
CALEDCXTEU2RW-NA
T20 Compliant
Not compliant
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
City Compliance
Chicago Approved
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
