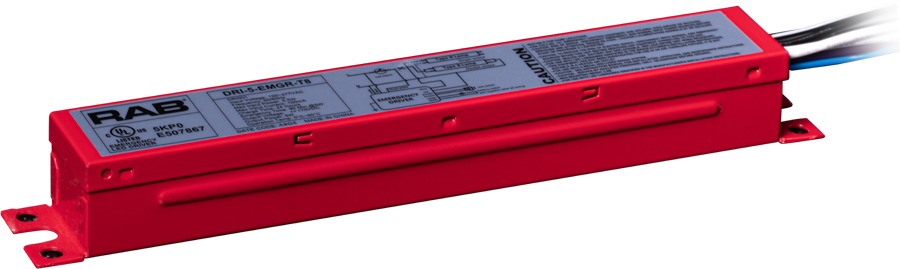

DRI-5-EMGR-T8

Spec Sheet Compatibility List Instructions FCC Caution Spec Sheet

DRI-5-EMGR-T8

Illuminates entire LED load at reduced output under emergency mode

One Piece Design with Metal Housing

2-in-1 LED test switch and indicator light included

Evaluated to UL 924 requirements

Not for use with dimmers

90 Minute operation in Emergency Mode

UL Listed

Operating Temperature: 32°F/0°C to 122°F/50°C

View Technical Specs

View Price & Availability

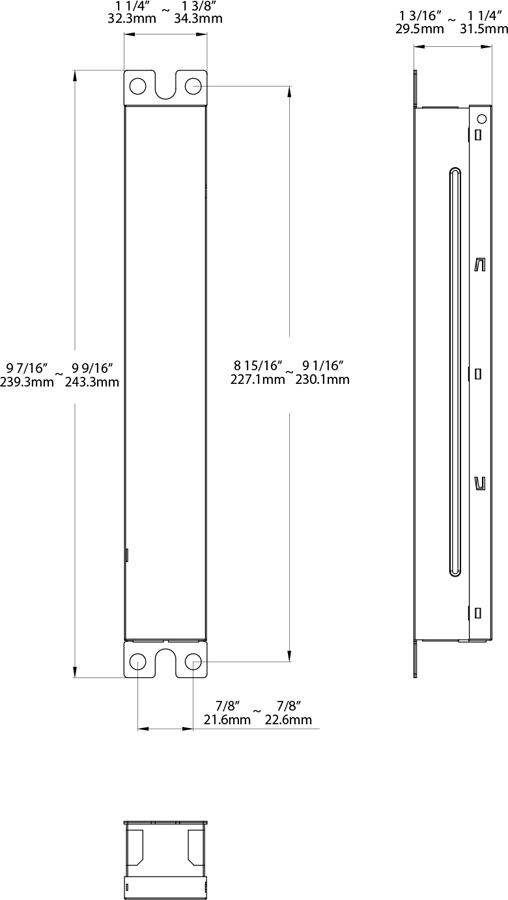

Dimensions

Weight: 0.9 lbs

Technical Specifications

Performance

Product Type

Driver

Input Wattage

Construction

Material

Metal Casing

Electrical

Power Factor

>0.4 @ 120V

Input Voltage

120-277V AC

Operating Frequency

50/60Hz

Input Current @ 120V

100mA

Rated Output Current

Load Dependent

Max Output Voltage

300VDC

Installation

Installation Type

Emergeny Back up for Double Ended or Single + Double ended tubes

Compliance

UL Listed

Yes

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

California Energy Commission (CEC) Status

Lawful for Sales in California

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
