DRI-36/48T8-4L-DIM
DRI-36/48T8-4L-DIM
- Compatible with RAB Type C T8 LED Lamps only
- Meets FCC Part 15 (Class B) Consumer Limits
- Short Circuit Overload and Open Load Protection
- Suitable for Dry and Damp Locations
- UL8750 Recognized Component
- Dimmable with 0-10V Dimmer
- Maximum Case Temperature: 75°C/167°F
- Input Frequency: 50/60 Hz
- THD: < 20%
- Type P
- Output Class 2

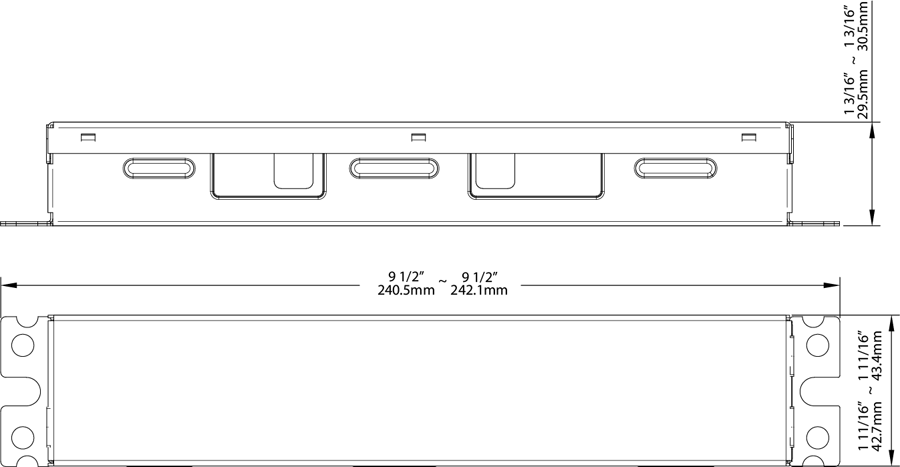

Dimensions
Weight: 1.1 lbs
Technical Specifications
Electrical
THD
<20%
Power Factor
>0.9
Input Voltage
120-277V AC
Input Frequency
50/60 Hz
Max. Standby Power
1W
Output Current
260mA*4
Max Output Voltage
30-45V
No-Load Voltage
56V dc Max.
Efficiency
>85%
Operating Temperature
-20°C/-4°F to 45°C/113°F
Dimming
0-10V Dimming
Performance
Input Power (Max)
52W
Construction
Storage Temperature
-30°C/-22°F to 80°C/176°F
Protection
Open circuit protection, over voltage protection, short circuit protection
Reduced Lamp Load
Parallel output for each channel, support N and N-1 application
Compliance
Certifications
Class P, UL8750, Output Class 2
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
