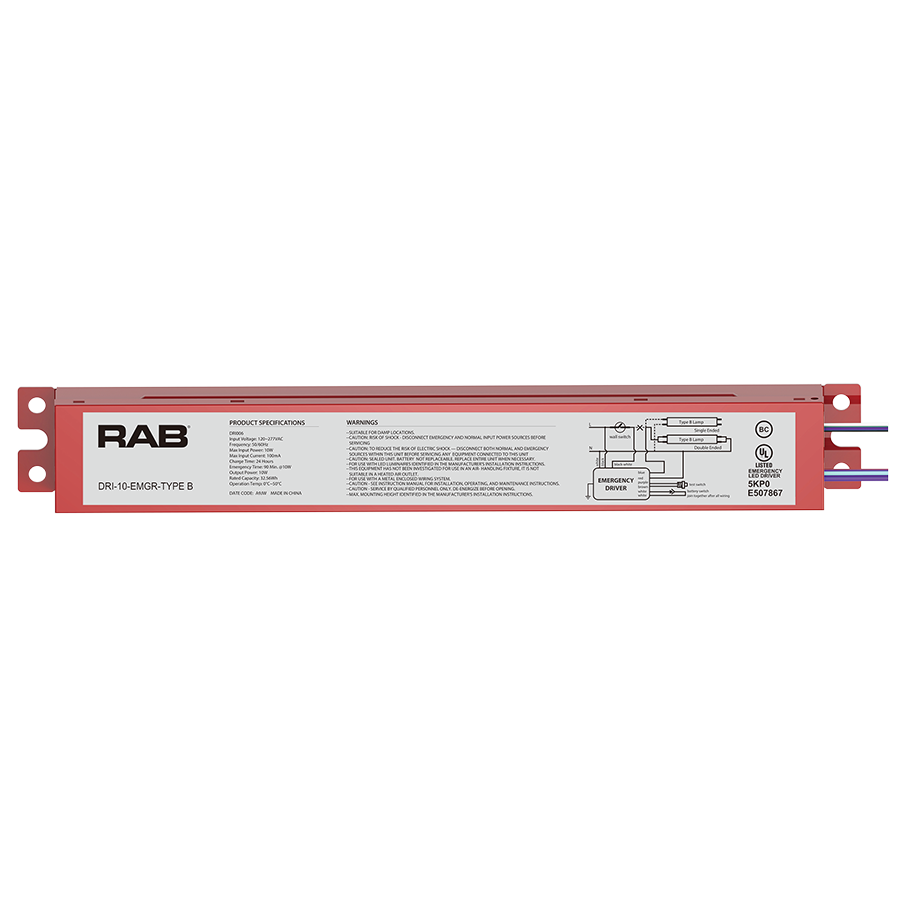

DRI-10-EMGR-TYPE B
DRI-10-EMGR-TYPE B
- Illuminates entire LED load at reduced output under emergency mode
- One Piece Design with Metal Housing
- 2-in-1 LED test switch and indicator light included
- Evaluated to UL 924 requirements
- Not for use with dimmers
- 90 Minute operation in Emergency Mode
- UL Listed
- Operating Temperature: 32°F/0°C to 122°F/50°C
Performance
| Watts | |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 1.3 lbs
Technical Specifications
Performance
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Construction
Bulb Shape
Cuboid
Enclosure Material
Metal
Electrical
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Operating Temperature
0°C to 50°C
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Listed
Environment
Damp
T20 Compliant
Yes
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
