DLPLATE/WFR6

Spec Sheet Family Spec Sheet Spec Sheet

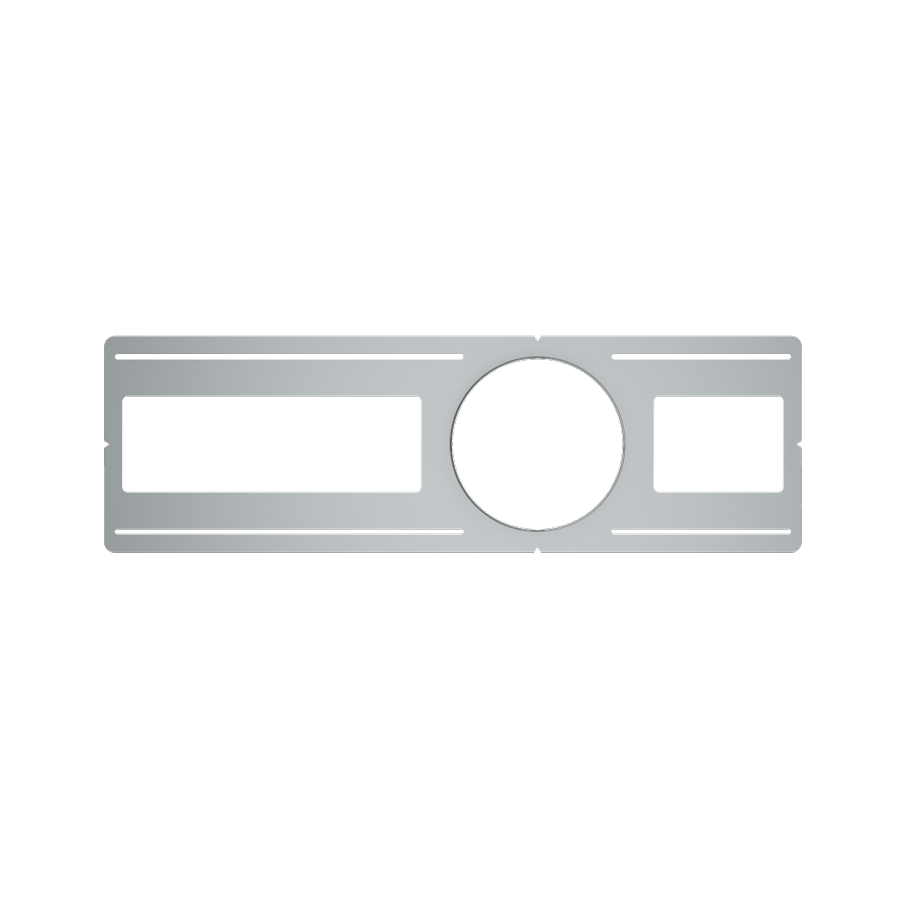

DLPLATE/WFR6 large main

DLPLATE/WFR6 small main

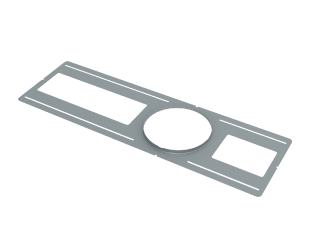

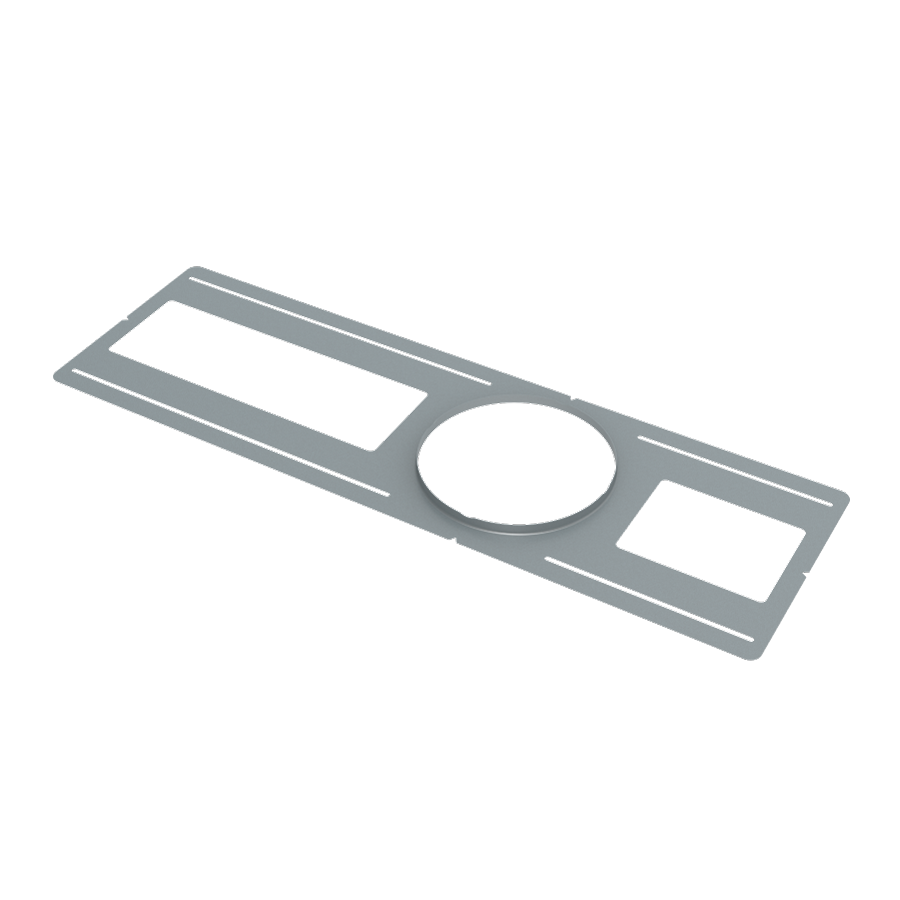

DLPLATE/WFR6 small thumb-1

DLPLATE/WFR6

View Technical Specs

View Price & Availability

Dimensions

Link to Dimension Drawing

Weight: 0.9 lbs

Technical Specifications

Performance

Product Type

Extension Cable

Description

Mounting plates, extension cables, color trims and goof rings for canless downlights.

Installation

Mounting

Recessed

Construction

Size

6"

Shape

Rectangle

Finish

Gray/Silver

Housing Material

Metal

Compliance

Listings

None

Environment

Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.

California Title 20 Compliant

No

California Title 24 JA8 Compliant

No

California Energy Commission (CEC) Status

Lawful for Sales in California

Other

Compatible Products

See Downlight Accessory Compatibility List for a complete listing of compatible products.
