DLED8R30N
DLED8R30N
- Low-profile enables compatibility with 8" housings
- UL Listed for damp locations
- TRIAC & ELV dimmable
- 10-Year, No-Compromise Warranty
Performance
| Watts | 30W |
| Color Temp | 4000K (Neutral) |
| Lumens | |
| Efficacy | |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.25A |
| 208V | 0.15A |
| 240V | 0.13A |
| 277V | 0.12A |
| Input Watts | 30W |

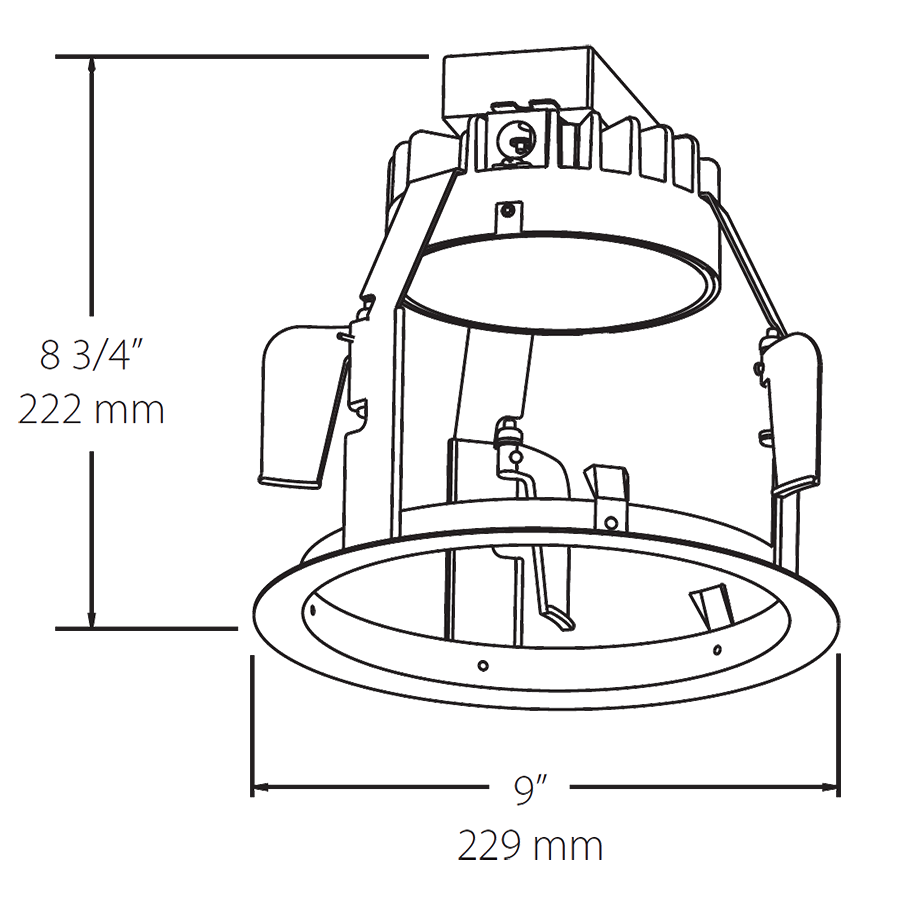

Dimensions
Weight: 5.0 lbs
Technical Specifications
Compliance
UL Classified
Suitable for damp locations; non-IC-rated ceilings
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Class 2, Constant Current, 50-60Hz, 700mA
Dimming
Universal dimming driver for 0-10V (at 120-277V), TRIAC or ELV (at 120V only). See dimmer compatibility guide here.
Surge Protection
6 kV
Construction
Housing Component
This component must be ordered with Retrofit Downlights Trim Module in order to make a complete fixture.
See here for Retrofit Reflectors.
See here for Retrofit Reflectors.
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Maximum Ambient Temperature
Suitable for use in up to95°F(35°C)
Lens
Microprismatic diffusion lens for smooth and even light distribution
Heat Sink
Die-cast aluminum with external fins for maximum heat dissipation
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Ceiling clamps for easy installation into existing, commercial, recessed downlight frames with opening of 7 7/8" (200mm) minimum and 8 7/8" (225.4mm) maximum (ceiling+can/pan thickness 1 7/16" maximum).
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Other
Compatibility
Low-profile design for maximum compatibility with 8" incandescent recessed downlight housings
Replacement
Replaces 50 Watt Metal Halide and 32 Watt CFL
LED Characteristics
LEDs
Long-life, high-efficiency surface-mount LEDs with 3 step binning
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
