DISK34-8/CL
- Ultra low-profile, back-lit design made of durable thermoplastic with frosted lens
- 5 selectable CCTs: 2700/3000/3500/4000/5000K
- Installs on standard 3" & 4" junction boxes
- Suitable for indoor/outdoor use in dry, damp, and wet locations
- Suitable for use in clothes closets
Performance
| Watts | 8W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 750 lm |
| Efficacy | 94 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.07A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 8W |
Dimensions
Weight: 1.0 lbs
Technical Specifications
Performance
Product Type
Closet Rated, Surface Mount DISK34
Description
Ultra-economy, CCT-adjustable, surface mount disk for new construction and retrofit applications — now available in closet-rated models.
Wattage Equivalency
60W Incandescent
Input Wattage
8W
Lumens (Nominal)
750lm
Efficacy
94lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 60 Hz; 120V: 71 mA
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
<30%
Emergency Operation
Not for emergency use.
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Default: 3000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Tuning
No
Color Accuracy (CRI)
90 CRI
Natural Spectrum
No
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting

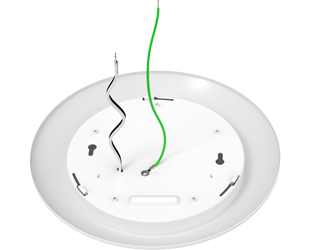

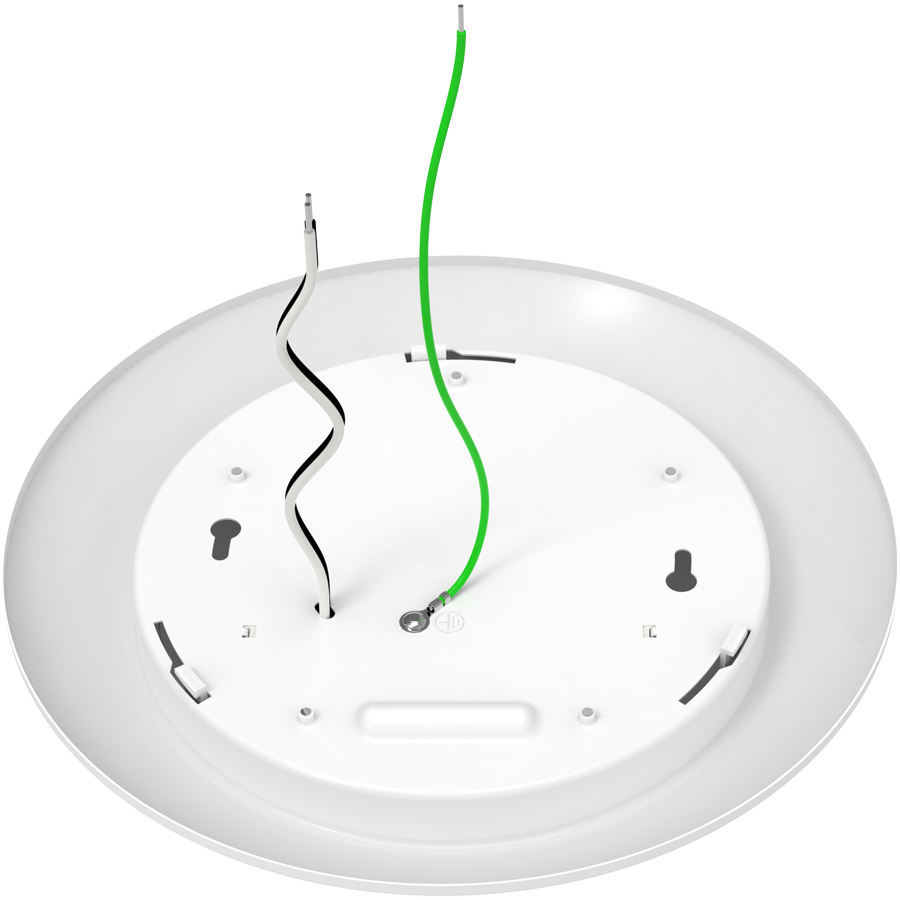

Surface Mount + Recessed Keyhole mounting slots allow for quick installation to junction box. Compatible with 3/0 & 4/0 J-Boxes.
Construction
Size
8"
Shape
Round
Finish
White
Enclosure Material
Stamped metal construction
Trim Style
Smooth
Lens Finish
Frosted
Lens
Twist-lock lens makes it easy to remove and attach during installation with UV resistant polycarbonate diffuser.
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
Housing certified Air Tight as per ASTM E283
Energy Star Approved
No
Certification Model Number
DLS0201(DISK34-8/CL)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
Closet Rated
UL listed for zero-clearance installation in closet storage space
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
