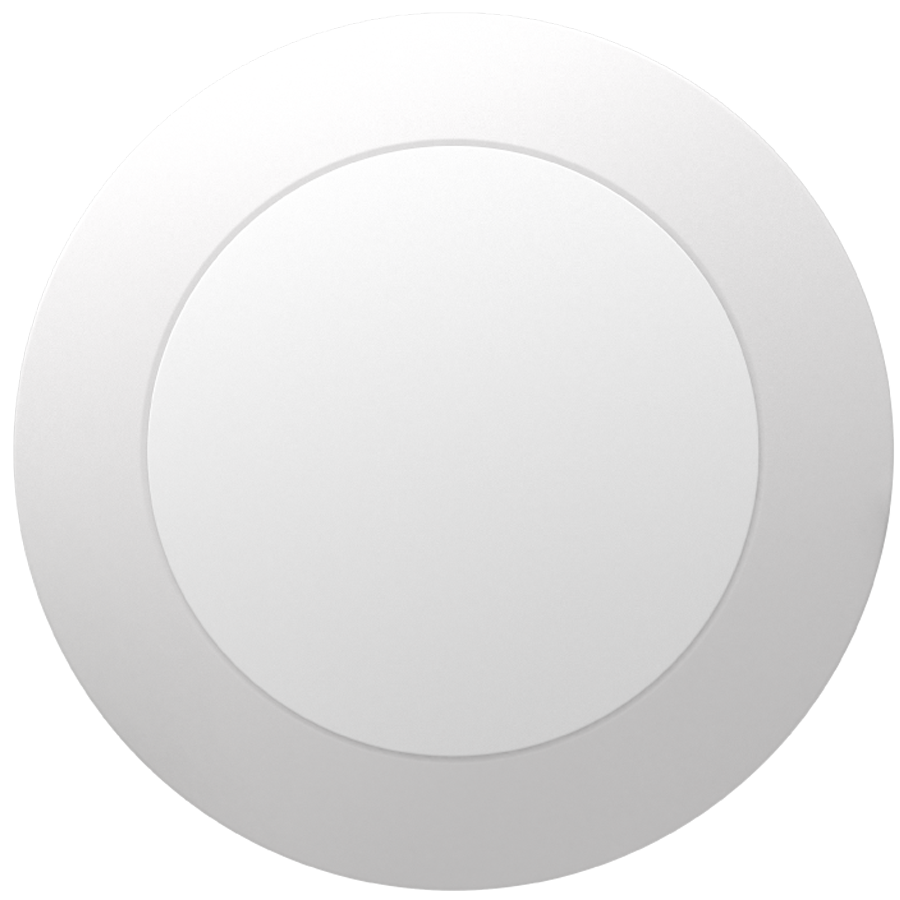

DISK34-6
DISK34-6
- Low-profile, back-lit design made of durable thermoplastic housing with frosted lens
- 5 Color temperature selectable: 2700K, 3000K, 3500K, 4000K, & 5000K
- New construction or retrofit applications
- Installs on standard junction boxes
- Suitable for indoor/outdoor use in dry, damp, and wet locations
Performance
| Watts | 15W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,300 lm |
| Efficacy | 86.7 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | .14A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 15W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
Disk Surface Mount
Description
Low-profile, surface-mount disk with field-adjustable color temperature for use in dry, damp and wet environments.
Wattage Equivalency
75W Incandescent
Input Wattage
15W
Lumens
2700K @ 1,017lm; 3000K @ 1,077lm; 3500K @ 1,128lm; 4000K @ 1,132lm; 5000K @ 1,088lm
Efficacy
2700K @ 68lm/W; 3000K @ 72lm/W; 3500K @ 77lm/W; 4000K @ 76lm/W; 5000K @ 73lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, 60 Hz, 120V, 120V: 0.09A
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V
136mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Field-adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Mounting
Surface Mount + Recessed
Construction
Size
6"
Shape
Round
Finish
White
Enclosure Material
Metal
Trim Style
Smooth
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Listings
UL Listed
Environment
Suitable for indoor and outdoor applications in dry, damp, and wet environments.
IC Rated
No
Air Tight
No
T20 Compliant
Not applicable
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS Compliant
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Energy Star Approved
ENERGY STAR® Version 1.0 Certified
Certification Model Number
DLR0124(R6R149FA120WS)
Energy Star ID
3478103
Other
Accessories
DSKFA6/PIR/ACC
Mounting hardware
Mounting hardware
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
