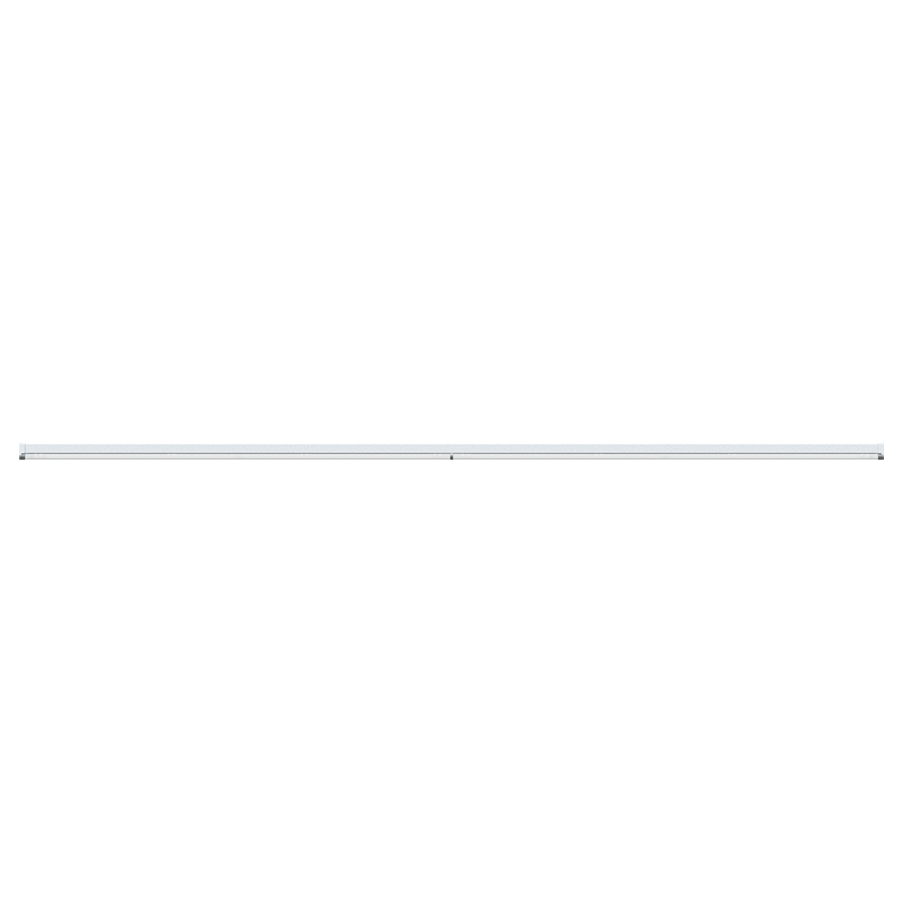

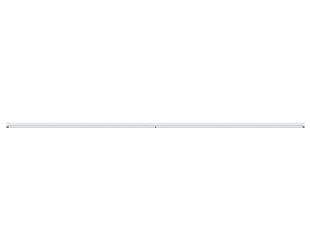

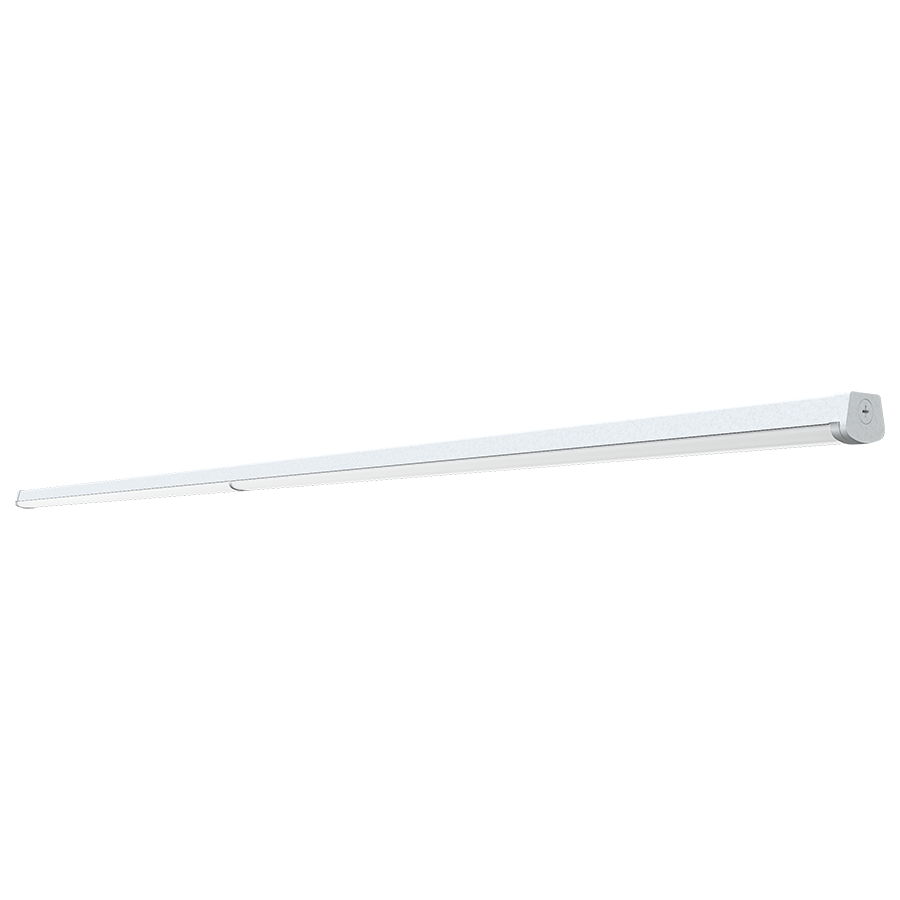

CS8
CS8
88W 3500/4000/5000K
- 0-10V Dimming, standard
- 100,000-hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 88/64/42W |
| Color Temp | 3500/4000/5000K |
| Lumens | 6,769-13,480 lm |
| Efficacy | 145.4-158.9 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.75A/0.54A/0.37A |
| 208V | 0.43A/0.31A/0.21A |
| 240V | 0.37A/0.27A/0.18A |
| 277V | 0.32A/0.24A/0.17A |
| Input Watts | 43.3-89.6W |
Dimensions
Weight: 7.9 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
8 ft: 88W/64W/42W (factory default 88W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
8 ft: 88W/64W/42W (factory default 88W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-S98R2B (High-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: S-P7PZWS (Direct Linear Ambient Luminaires)
DLC Product Code: S-S98R2B (High-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: S-P7PZWS (Direct Linear Ambient Luminaires)
Electrical
Driver
88W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V: 0.75A, 208V: 0.43A, 240V: 0.37A, 277V: 0.32A
64W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.54A, 208V: 0.31A, 240V: 0.27A, 277V: 0.24A
42W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.17A
64W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.54A, 208V: 0.31A, 240V: 0.27A, 277V: 0.24A
42W: Constant Current, Class 2, 120-277V, 50/60 Hz,120V:0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.17A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.61% at 120V, 10.91% at 277V
Power Factor
99.8% at 120V, 97.9% at 277V
Surge Protection
DM: 1 kV
CM: 2 kV
CM: 2 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
88W: Replaces up to (5) F32T8 or (3) F96T8
64W: Replaces up to (4) F32T8 or (2) F96T8
42W: Replaces up to (3) F32T8 or (1) F96T8
64W: Replaces up to (4) F32T8 or (2) F96T8
42W: Replaces up to (3) F32T8 or (1) F96T8
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Housing
Sustainable, biocomposite resin manufactured with coffee chaff, waste seashells, and recycled plastic.
Lens
Acrylic lens
Finish
Naturally occurring, beige, speckled pattern
Green Technology
Mercury free. Made with RoHS-compliant components and biorenewable components.
Installation
Mounting
Surface and suspended mount standard. End-to-end connections require conduit wiring.
Optical
BUG Rating
CS8 100%: B3 U3 G2
CS8 75%: B3 U3 G2
CS8 50%: B3 U3 G1
CS8 75%: B3 U3 G2
CS8 50%: B3 U3 G1
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
