CR4 - RAB Lighting

CR4

Spec Sheet IES File LM79 Instructions Cut Out Template Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

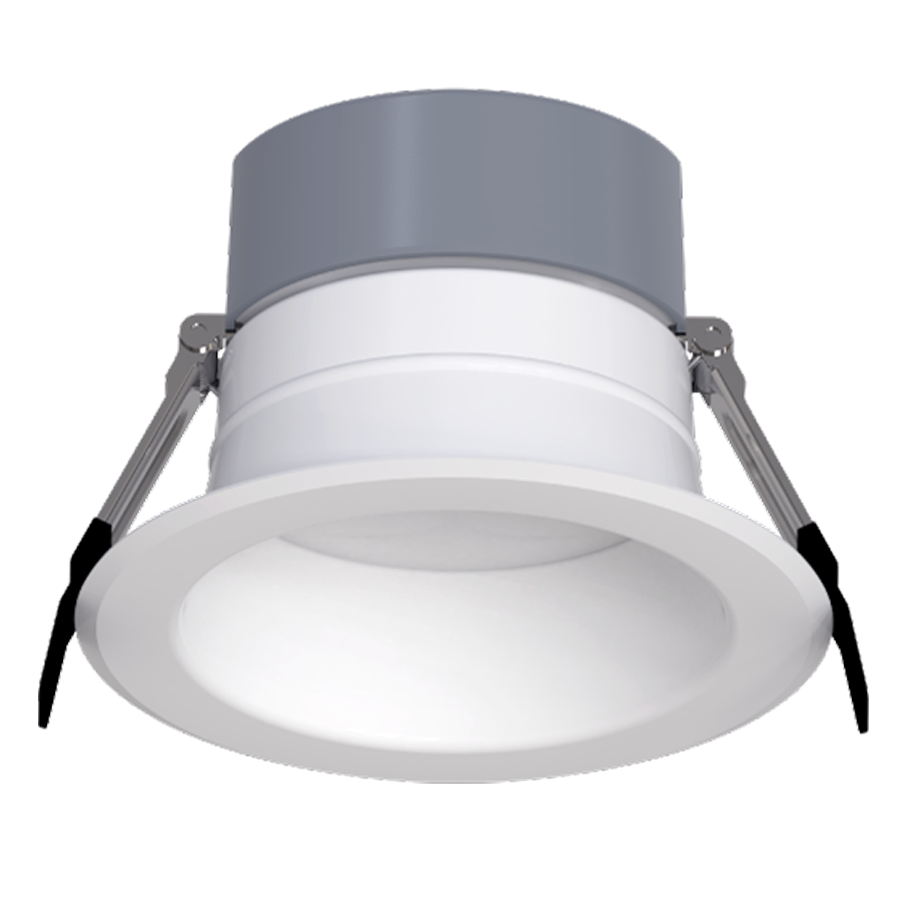

CR4

Universal dimming technology allows for both 120V TRIAC/ELV dimming and 0-10V dimming in 1 SKU for incredible design flexibility

3 selectable brightness levels & 5 selectable CCTs (2700/3000/3500/4000/5000K)

Suitable for new construction & remodel installations

Deep regress lens for optimal glare control

Multiple accessories available, including color trims and new construction mounting plates

View Technical Specs

View Price & Availability

Performance

Watts	10/8/06W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1000/800/600 lm
Efficacy	113/112/110 lm/W
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current, Class A
120V	0.11A
208V
240V
277V	0.04A
Input Watts	10/8/06W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.9 lbs

Technical Specifications

Performance

Product Type

Commercial Downlight

Description

The CR commercial downlight offers best-in-class flexibility by adding universal dimming, which allows for both TRIAC & 0-10V dimming, making it a great choice for residential & commercial installations.

Wattage Equivalency

23W CFL

Input Wattage

10/8/6W

Lumens (Measured)

6W
637lm @ 2700K; 653lm @ 3000K; 669lm @ 3500K; 680lm @ 4000K; 693lm @ 5000K

8W
835lm @ 2700K; 859lm @ 3000K; 883lm @ 3500K; 899lm @ 4000K; 909lm @ 5000K

10W
1,048lm @ 2700K; 1,082lm @ 3000K; 1,116lm @ 3500K; 1,138lm @ 4000K; 1,143lm @ 5000K

Efficacy

113/112/110lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class A 120-277V 50/60 Hz; 120V: 110mA; 277V: 37mA

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV and 0-10V dimming systems. See Dimmer Compatibility List.

Input Voltage

120-277V

Operating Frequency

50/60Hz

Operating Temperature

-4°F to 104°F (-20 to 40°C)

Flicker

≤30%

Battery Backup

Sold separately

LED Characteristics

Beam Angle

85°±10°

Color Temperature

Default: 2700K
Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Tuning

Color Accuracy (CRI)

90 CRI

Natural Spectrum

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Integrated Driver

Driver is integrated on top of the light fixture and connects to junction box (not included) using the provided MC Whip cable.

Mounting

Stainless steel spring action clips allow for both easy direct installation from 1/2" to 2" ceiling thicknesses and field accessibility below the ceiling for service or replacement.

Installation Types

Designed for remodel or direct mounting in the ceiling, or can be retrofited into existing commercial downlight housings.

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Made from spun aluminum which maximizes passive cooling to ensure long lifespan

Trim Style

Spun aluminum trim with smooth splay reflector

Lens Finish

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Air Tight

Housing certified Air Tight as per ASTM E283

Energy Star Approved

This product is ENERGY STAR® Version 2.2 Certified

Certification Model Number

DLC1006(CR4)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Accessories

DL4-6GOOF/R/P/CRLEDFA
4"-6" Goof ring white round

DLTRIM/CRLEDFA4R-BS
4" Color trim, round, smooth black

DLTRIM/CRLEDFA4R-BNS
4" Color trim, round, smooth brushed nickel

DLTRIM/CRLEDFA4R-BRS
4" Color trim, round, smooth bronze

DLTRIM/CRLEDFA4R-HW
4" Color trim, round, smooth haze white

DLTRIM-4RW-WW
4" Color trim, round, smooth, wall wash white

DLPLATE/C3468R/NB
3", 4", 6", 8" Mounting plate w/nailer bar

DLPLATE/WFR3456
3", 4", 5", 6" Mounting plate

DLPLATE/WFR3468/NB
3", 4", 6", 8" Mounting plate w/nailed bar

DLPLATE/WFR4/NB/CL
4" Mounting plate w/nailed bar and drywall collar

DLPLATE/WFR4
4" Mounting plate

ND22-RFRAME
Retrofit mounting frame

DRI-21-EMGR-DC-D10
Emergency driver T20

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
