CANVAS78TY/D10
CANVAS78TY/D10
- Replaces 250W MH Floodlights
- NEMA Type 6H x 4V ideal for signage & facades
- Ultra-low field-to-beam ratio concentrates light where it's required
- Microprismatic diffusion lens optimizes light output without glare
- Superior thermal management with patent-pending "Airflow" technology
- 100,000-Hour LED lifespan
Performance
| Watts | 78W |
| Color Temp | 3000K (Warm) |
| Lumens | 8,373 lm |
| Efficacy | 106.3 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.67A |
| 208V | 0.38A |
| 240V | 0.33A |
| 277V | 0.31A |
| Input Watts | 78.8W |
Dimensions
Weight: 27.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Construction
Effective Projected Area
EPA = 1.2
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Driver
Constant current, Class2, 100-277V. 50/60 Hz, 6kV Surge Protection, 120-277V, 120V: 0.67A, 208V: 0.38A, 240V: 0.33A, 277V: 0.31A
THD
3.88% at 120V, 8.11% at 277V
Power Factor
99.8% at 120V, 92.9% at 277V
Recently Viewed Products
BOA3R/LCBS
Boa 3' Downlight 30/21/18/15/8W Recessed 3000/3500/4000K Flat Lightcloud Blue With Passive Infrared Sensor White
T8HO-40-96G-R17D-850-DE-BYP
Linear Tubes 5500 Lumens T8Ho 40W Base R17D 5000K Double Ended Wiring Method

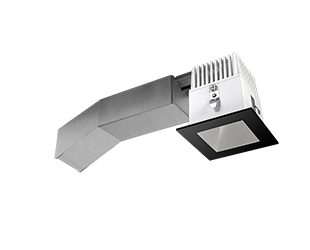

RDDLED2S-10D-40YYHC-M-BT
