DLED6AR14Y has been discontinued. You have been redirected to its new replacement, RA6R109FA120WS

Return to DLED6AR14Y

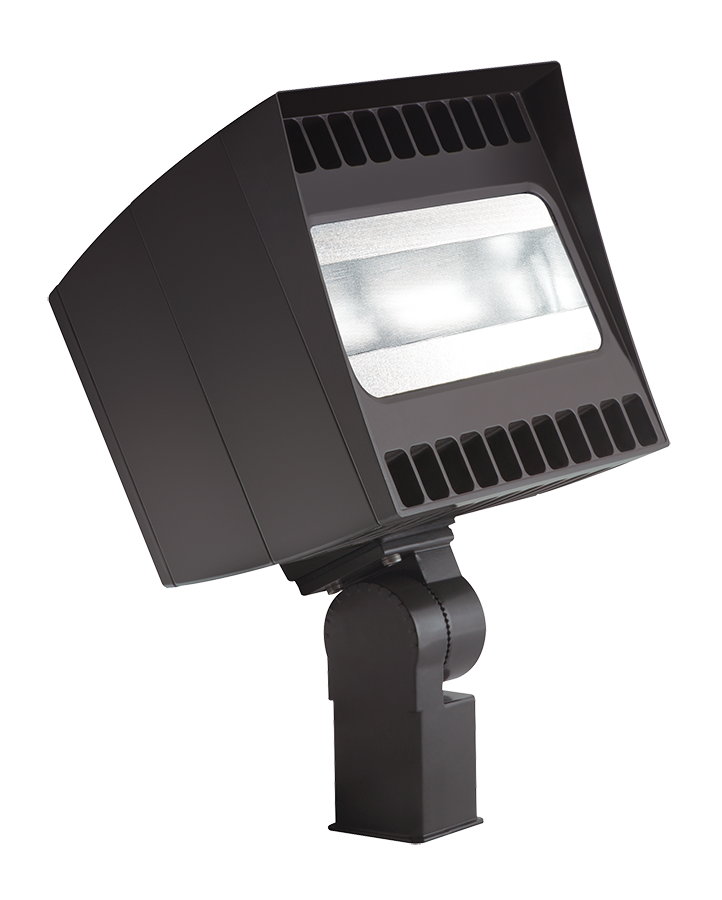

  • Replaces 250W MH Floodlights
  • NEMA Type 6H x 4V ideal for signage & facades
  • Ultra-low field-to-beam ratio concentrates light where it's required
  • Microprismatic diffusion lens optimizes light output without glare
  • Superior thermal management with patent-pending "Airflow" technology
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 78W
Color Temp 4000K (Neutral)
Lumens 10,098 lm
Efficacy 112.2 lm/W
Color Accuracy 70 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.82A
208V 0.53A
240V 0.46A
277V 0.40A
Input Watts 90W
Dimensions
Link to Dimension Drawing

Weight: 26.6 lbs

Technical Specifications
Electrical
Drivers
Constant current, Class 2, 100-277V, 50/60 Hz, 6kV Surge Protection, 720mA, 100-277V: 0.4A, THD <20%, Power Factor 89.7%
Photocell
277V Swivel photocell included. Photocell is compatible with 208V-277V.
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IP Rating
Ingress protection rating of IP66 for dust and water
Construction
Effective Projected Area
EPA = 1.2
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
