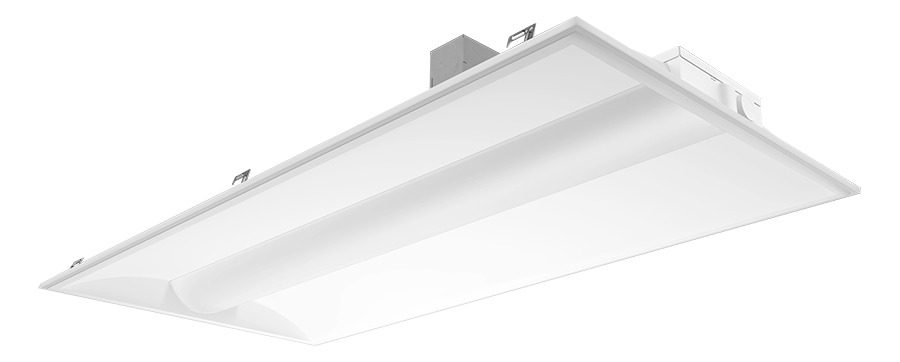

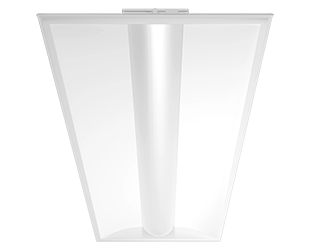

C-SWISH2X4

40W 3500/4000/5000K

0-10V Dimming, standard

100,000-hour LED lifespan

5-Year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	40/30/20W
Color Temp	3500/4000/5000K
Lumens	2,810-4,884 lm
Efficacy	133.5-143.8 lm/W
Color Accuracy	84-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.30A/0.25A/0.17A
208V	0.17A/0.14A/0.10A
240V	0.15A/0.13A/0.08A
277V	0.13A/0.11A/0.07A
Input Watts	19.7-35.4W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 11.3 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
2' x 4': 36W/30W/20W (factory default 36W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IC Rated

Suitable for direct contact with insulation

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

6.86% at 120V, 12.76% at 277V

Power Factor

99.7% at 120V, 97.2% at 277V

Surge Protection

L-N: 1 kV
L/N-PE: 2 kV

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Polypropylene (PP)

Reflector

Integral reflector (on the sides) with high reflectance finish, optimized for uniform distribution.

Lens

Polycarbonate lens

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Recessed ceiling

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Driver

36W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.30A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
30W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.14A, 240V: 0.13A, 277V: 0.11A
20W: Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.17A, 208V: 0.10A, 240V: 0.08A, 277V: 0.07A
