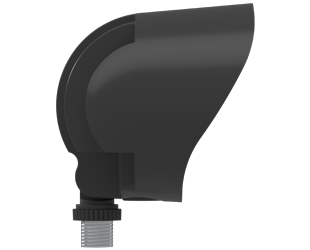

BULLET12A
BULLET12A
12W 3000/4000/5000K
- 100,000-hour LED Life
- 120V
- 5-Year, limited warranty
Performance
| Watts | 12/9/06W |
| Color Temp | 3000/4000/5000K |
| Lumens | 636-1,324 lm |
| Efficacy | 100.2-116.4 lm/W |
| Color Accuracy | 82-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.10A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 5.7-12.3W |
Dimensions
Weight: 0.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
12W/9W/6W (factory default 12W)
Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)
12W/9W/6W (factory default 12W)
Color temperature selectable 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Electrical
Driver
Constant Current, Class 1, 120V, 50/60Hz, 120V: 0.10A
Dimming Driver
TRIAC compatible dimmer with dimming as low as 10%.
THD
14.53% at 120V
Power Factor
99% at 120V
Surge Protection
L/N:1 kV, L/N-PE:1 kV
Aux Power Supply
No
Dim to Off
No
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Glass
Housing
Die-cast aluminum
Reflector
Polyethylene Terephthalate (PET)
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
NEMA Type
NEMA Beam Spread 6H x 6V
Installation
Mounting
Heavy-duty mounting arm with "O" ring seal and stainless steel screws
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
