BULL2W

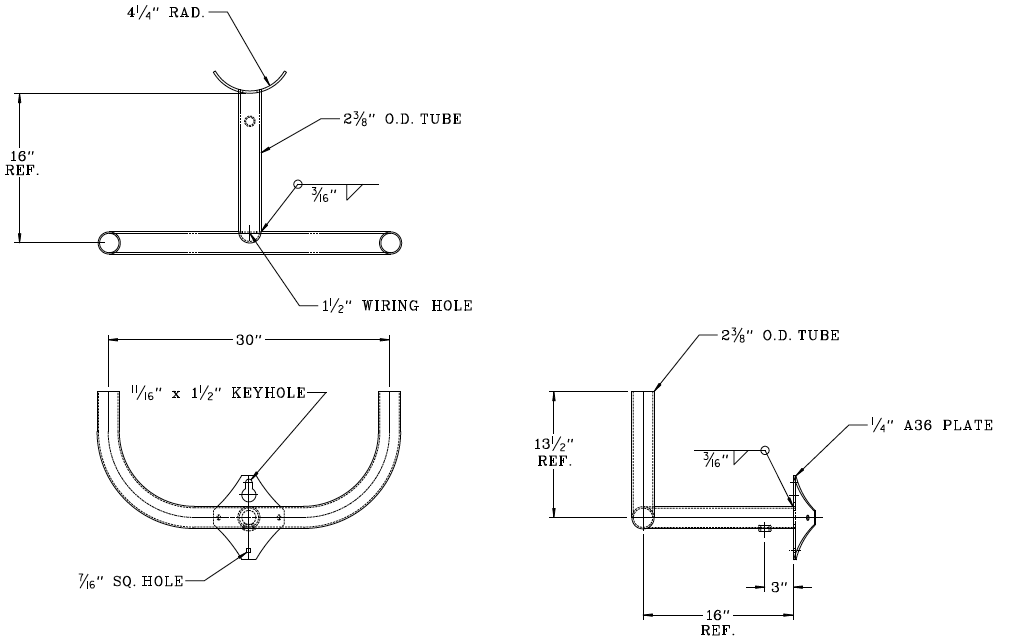

Dimensions
Weight: 21.9 lbs
Technical Specifications
Installation
Mounting
BULL2W is for mounting slipfitter fixtures onto wooden poles
Construction
Finish
Galvanized steel
Bullhorns
2 tenons for slip fitters. Bullhorns fit 2 3/8" (6cm) O.D. tenons and accommodate 2 3/8" (6cm) slip fitters. Steel tubing.150" and.200" thick welded.
EPA
Maximum EPA of 5.4 and 105 lbs per arm, total EPA of 10.8 and 210 lbs per BULL2W in a 80 MPH wind zone 1.3 gust factor
Maximum EPA pf 2.65 and 84 lbs per arm, total EPA of 5.3 and 168 lbs per BULL2W in a 150 MPH wind zone 1.3 gust factor
Per AASHTO 2015
Maximum EPA pf 2.65 and 84 lbs per arm, total EPA of 5.3 and 168 lbs per BULL2W in a 150 MPH wind zone 1.3 gust factor
Per AASHTO 2015
Other
Patents
The designs of fixtures are protected under U.S. and international intellectual property laws.
